d = read.csv("../data/SaratogaHouses.csv")
d$price = d$price/1000; d$livingArea = d$livingArea/1000
plot(d$livingArea,d$price, 'p', pch=20, col="blue")
13 Linear and Multiple Regression
The simplest form of a parametric model is a linear model that assumes a linear relationship between the input variables and the output variable. There are a number of possibilities to specify such a family of functions, for example as a linear combinations of inputs \[ f(x)=\beta_0+\beta_1x_1 + \ldots + \beta_p x_p = \beta^Tx, \] we assume that vector \(x\) has \(p+1\) components \(x = (1,x_1,\ldots,x_p)\) and \(\beta = (\beta_0,\beta_1,\ldots,\beta_p)\) is a vector of parameters.
A more general form of a linear model is a linear combination of basis functions \[ f(x)= \beta_0 + \beta_1 \psi_1(x) + \ldots + \beta_M \psi_M(x) = \beta^T \psi(x), \] where \(\psi_1,\ldots, \psi_M\) are the basis functions and \(\psi(x) = (1, \psi_1(x),\ldots,\psi_M(x))\).
Notice in the later case, the function \(f\) is linear in the parameters \(\beta = (\beta_0,\beta_1,\ldots, \beta_p)\) but not in the input variables \(x\). The goal of the modeler to choose an appropriate set of predictors and basis functions that will lead to a good reconstruction of the input-output relations. After we’ve specified what the function \(f\) is, we need to find the best possible values of parameters \(\beta\).
Finding a predictive rule \(f(x)\) starts by defining the criterion of what is a good prediction. We assume that the function \(f(x)\) is parameterized by a vector of parameters \(\beta\) and we want to find the best value of \(\beta\) that will give us the best prediction. Thus, we will use notation \(f(x,\beta)\).
We will us a loss function that quantifies the difference between the predicted and actual values of the output variable. It is closely related to the loss function used in decision theory (thus the name). In decision theory, a loss function is a mathematical representation of the “cost” associated with making a particular decision in a given state of the world. It quantifies the negative consequences of choosing a specific action and helps guide decision-makers towards optimal choices. You can think of the loss function in predictive problems as a “cost” associated with making an inaccurate prediction given the values of the input variables \(x\).
The least squares loss function is the sum of squared differences between the predicted and actual values. Given observed data set \(\{(x_1,y_1),\ldots,(x_n,y_n\}\), the least squares estimator is the value of \(\beta\) that minimizes the sum of squared errors \[ \mini_{\beta}\sum_{i=1}^n (y_i - f(x_i,\beta))^2 \] It is easy to show that in the case of normal distribution, the least squares estimator is the maximum likelihood estimator.
In the unconditional case, when we do not observe any inputs \(x\), the least squares estimator is the sample mean. We can solve his minimization problem by taking derivative of the loss function and setting it to zero \[ \frac{d}{d\beta}\sum_{i=1}^n (y_i - \beta)^2 = -2\sum_{i=1}^n (y_i - \beta) = 0 \] which gives us the solution \[ \hat{\beta} = \frac{1}{n}\sum_{i=1}^n y_i \] which is the sample average.
The least absolute deviations (Quantile) loss function is the sum of absolute differences between the predicted and actual values. It is used for regression problems with continuous variables. The goal is to minimize the sum of absolute errors (SAE) to improve the predictive performance of the model. Given observed data set the least absolute deviations estimator is the value of \(\beta\) that minimizes the sum of absolute errors \[ \mini_{\beta}\sum_{i=1}^n |y_i - f(x_i,\beta)| \] The least absolute deviations estimator is also known as the quantile estimator, where the quantile is set to 0.5 (the median). This is because the least absolute deviations estimator is equivalent to the median of the data (the 0.5 quantile).
Again, in the unconditional case, when we do not observe any inputs \(x\), the least absolute deviations estimator is the sample median. We can solve his minimization problem by taking derivative of the loss function and setting it to zero \[ \frac{\mathrm{d} \left | x \right | }{\mathrm{d} x} = \operatorname{sign} \left( x \right) \] where \(\operatorname{sign} \left( x \right)\) is the sign function. Hence, deriving the sum above yields \[ \sum_{i=1}^n \operatorname{sign}(y_i - \beta). \] This equals to zero only when the number of positive items equals the number of negative which happens when \(\beta\) is the median.
A more rigorous and non-calculus proof is due to Schwertman, Gilks, and Cameron (1990). Let \(y_1,\ldots,y_n\) be the observed data and \(\hat{\beta}\) be the least absolute deviations estimator. Then we have \[ \sum_{i=1}^n |y_i - \hat{\beta}| \leq \sum_{i=1}^n |y_i - \beta| \] for any \(\beta\). Let \(y_{(1)},\ldots,y_{(n)}\) be the ordered data. Then we have \[ \sum_{i=1}^n |y_i - \hat{\beta}| \leq \sum_{i=1}^n |y_i - y_{(i)}| \] Let \(y_{(n/2)}\) be the median of the data. Then we have \[ \sum_{i=1}^n |y_i - \hat{\beta}| \leq \sum_{i=1}^n |y_i - y_{(n/2)}| \] which implies that \(\hat{\beta}\) is the median of the data.
The generalization of the median estimator to the case of estimating value of quantile \(\tau\) is as follows \[ \mini_{\beta}\sum_{i=1}^n \rho_{\tau}(y_i - f(x_i,\beta)) \] where \(\rho_{\tau}(x) = x(\tau - \mathbb{I}(x < 0))\) is the quantile loss function. If we set \(\tau = 0.5\), the loss function becomes the absolute value function and we get the median estimator.
A key difference between the least squares and least absolute deviations estimators is their sensitivity to outliers. The least squares estimator is sensitive to outliers because it squares the errors, giving more weight to large errors. In contrast, the least absolute deviations estimator is less sensitive to outliers because it takes the absolute value of the errors, giving equal weight to all errors. This makes the least absolute deviations estimator more robust to outliers than the least squares estimator.
Another difference is the computational complexity. Least squares estimator can be found by solving a linear system of equations. There are fast and efficient algorithms for it, making the least squares estimator computationally efficient. In contrast, the least absolute deviations estimator cannot requires more computationally expensive numerical optimization algorithms.
There is also a hybrid loss function, called Huber loss , which combines the advantages of squared errors and absolute deviations. It uses SE for small errors and AE for large errors, making it less sensitive to outliers.
Example 13.1 To demonstrate linear regression we develop a model that predicts the price of a house, given its square footage. This is a simplified version of a regression model used by Zillow, a house pricing site. First, we look at property sales data where we know the price and some observed characteristics. Let’s look at the scatter plot of living areas measure in squared feet and the price measured in thousands of dollars.
Second, we build a model that predicts price as a function of the observed characteristics. Now, we need to decide on what characteristics do we use. There are many factors or variables that affect the price of a house, for example location. Some other basics ones include size, number of rooms, and parking.
We will use the SaratogaHouses dataset from the mlbench package. This dataset contains information about house sales in Saratoga County, New York, between 2004 and 2007. The dataset contains 1,172 observations and 16 variables. We will use the price variable as the dependent variable and the livingArea variable as the independent variable. The price variable contains the sale price of the house in thousands of dollars, and the livingArea variable contains the living area of the house in square feet. \[
\mathrm{price} = \beta_0 + \beta_1 \mathrm{livingArea}
\]
The value that we seek to predict,price, is called the dependent variable, and we denote this by \(y\). The variable that we use to construct our prediction, livingArea, is the predictor variable, and we denote it with \(x\). Typically, we use those notations to write down the formulas \[
y = \beta_0 + \beta_1 x.
\]
First, let’s see what’s does the data look like?
We use lm function to estimate the parameters of the line
l = lm(price ~ livingArea, data=d)
plot(d$livingArea, d$price, 'p', pch=20, col="blue", xlab="Living Area", ylab="Price")
abline(l, col="red", lwd=3)
This R code is fitting a linear regression model using the lm function. Let’s break down the code:
lm: This is the function used for fitting linear models, it used least squares loss function.price: This is the dependent variable, the variable you are trying to predict. It is assumed to be in the dataset specified by thedataargument.~: In the context of the formula insidelm, the tilde (~) separates the dependent variable from the independent variable(s).livingArea: This is the independent variable or predictor. In this case, the model is trying to predict the variablepricebased on the values oflivingArea.data = d: This specifies the dataset that contains the variablespriceandlivingArea. The dataset is namedd.
So, in plain English, this R code is fitting a linear regression model where the price is predicted based on the livingArea in the dataset d. The model is trying to find a coefficient for livingArea to minimize the difference between the predicted values and the actual values of price.
We can use coef function to find out the slope and the intercept of this line.
coef(l)(Intercept) livingArea
13 113 The intercept value is in units of \(y\) ($1000). The slope is in units of \(y\) per units of \(x\) ($1000/1 sq. feet). In our housing example, we find that \(\beta_0 = 13.44\) and \(\beta_1 =113.12\). Thus, every \(1000\) sqft increase the price of the hous by $1.34^{4} and the price of a lot of land without a house is 113.12. The magnitude of \(\beta_1\) shows the economic significance of house’s square footage.
We can now predict the price of a house when we only know that size: take the value off the regression line. For example, given a house size of \(x = 2.2\). Predicted Price: \[ \hat{y} = 13.44 + 113.12 \times 2.2 = 262.31 \]
plot(d$livingArea, d$price, 'p', pch=20, col="blue", xlab="Living Area", ylab="Price")
abline(l, col="red", lwd=3)
# Draw a line between the two points
x = 2.2
yhat = x*coef(l)[2]+coef(l)[1]
lines(c(x,x), c(0,yhat), col="green", lwd=3, lty=2)
lines(c(0,x), c(yhat,yhat), col="green", lwd=3, lty=2)
text(x-0.7,yhat+30, TeX("$\\hat{y} = 262.3$"), cex=1.5)
We used lm function to fit the linear model for the housing data. This function uses least squares loss function to estimate the parameters of the line. One of the nice properties of the least squares estimator is that it has a closed-form solution. This means that we can find the values of the parameters that minimize the loss function by solving a system of linear equations rather than using an optimisation algorithm. The linear system is obtaind by taking the gradient (multivariate derivative) of the loss function with respect to the parameters and setting it to zero. The loss function \[
L(\beta; ~D) = \sum_{i=1}^n (y_i - f(x_i,\beta))^2
\] is a quadratic function of the parameters, so the solution is unique and can be found analytically. The gradient of the loss function with respect to the parameters is \[
\Delta L(\beta; ~D) = -2\sum_{i=1}^n (y_i - f(x_i,\beta))\Delta f(x_i,\beta).
\] Given that \(f(x_i,\beta) = \beta^T \psi(x_i)\), the gradient of the loss function with respect to the parameters is \[
\Delta L_{\beta} = -2\sum_{i=1}^n (y_i - \beta^T \psi(x_i))\psi(x_i)^T.
\] Setting the gradient to zero gives us the normal equations \[
\sum_{i=1}^n y_i \psi(x_i) = \sum_{i=1}^n \beta^T \psi(x_i) \psi(x_i)^T.
\] In matrix form, the normal equations are \[
\Psi^Ty = \Psi^T\Psi\beta
\] where \(\Psi\) is the design matrix with rows \(\psi(x_i)^T\) and \(y\) is the vector of output values. The solution to the normal equations is \[
\hat{\beta} = (\Psi^T\Psi)^{-1}\Psi^Ty.
\]
y = d$price; Psi = cbind(1,d$livingArea);
lhs = t(Psi)%*%Psi; rhs = t(Psi)%*%y
beta = solve(lhs,rhs)
beta[,1] 13 113The function solve indeed finds the same values as the lm function. Essentially this is what the lm function does under the hood. The solve function uses the elimination method to solve the system of linear equations. The method we all learned when we were introduced to linear equations. The technique is known in linear algebra as LU decomposition.
13.1 Prediction vs Interpretation
As we have discussed at the beginning of this chapter the predictive rule can be used for two purposes: prediction and interpretation. The goal of interpretation is to understand the relationship between the input and output variables. The two goals are not mutually exclusive, but they are often in conflict. For example, a model that is good at predicting the target variable might not be good at interpreting the relationship between the input and output variables. A nice feature of a linear model is that it can be used for both purposes, unlike more complex predictive rules with many parameters that can be difficult to interpret.
Typically the problem of interpretation requires a simpler model. We prioritize models that are easy to interpret and explain, even if they have slightly lower predictive accuracy. Also, evaluation metrics are different, we typically use coefficient of determination (R-squared) or p-values, which provide insights into the model’s fit and the significance of the estimated relationships.
The choice between using a model for prediction or interpretation depends on the specific task and desired outcome. If the primary goal is accurate predictions, a complex model with high predictive accuracy might be preferred, even if it is less interpretable. However, if understanding the underlying relationships and causal mechanisms is crucial, a simpler and more interpretable model might be chosen, even if it has slightly lower predictive accuracy. Typically interpretive models are used in scientific research, social sciences, and other fields where understanding the underlying causes and relationships is crucial.
In practice, it’s often beneficial to consider both prediction and interpretation when building and evaluating models. However, it is not unusual to build two different models, one for prediction and one for interpretation. This allows for a more nuanced analysis of the data and can lead to better insights than using a single model for both purposes.
In out housing example we used a linear model to predict the price of a house based on its square footage. The model is simple and easy to interpret, making it suitable for both prediction and interpretation. The model provides insights into the relationship between house size and price, allowing us to understand how changes in house size affect the price. The model can also be used to make accurate predictions of house prices based on square footage. This demonstrates the versatility of linear models for both prediction and interpretation tasks.
Let’s consider another example of using a linear model that allows us to understand the relations between the performance of stock portfolio managed by John Maynard Keynes and overall market performance.
Example 13.2 (Keynes Investment Performance) John Maynard Keynes was a good investor, achieving a long-term average annual return of 16% while managing the King’s College Cambridge endowment fund from 1921 to 1946. This performance significantly outperformed the overall market during that period. In the 1921-1929 period he experimented with investments in art and currency, as well as cyclical equity investing. However, later in 1930s and onwards Keynes transitioned to a value investing strategy, focusing on undervalued stocks with strong fundamentals. This coincided with the Great Depression, where such investments offered significant opportunities. This shift led to consistent outperformance, with the King’s College endowment generating returns exceeding the market on average. In our analysis we consider his returns during the 1928-1945 period. Below is the plot of his returns.
keynes = read.csv("../data/keynes.csv",header=T)| Year | Keynes | Market | Rate |
|---|---|---|---|
| 1928 | -3.4 | 7.9 | 4.2 |
| 1929 | 0.8 | 6.6 | 5.3 |
| 1930 | -32.4 | -20.3 | 2.5 |
| 1931 | -24.6 | -25.0 | 3.6 |
| 1932 | 44.8 | -5.8 | 1.5 |
| 1933 | 35.1 | 21.5 | 0.6 |
attach(keynes)
# Plot the data
plot(Year,Keynes,pch=20,col=34, cex=3, type='l')
mean(Keynes) 13Let’s compare his performance to the overall stock market. The Dow Jones Industrial Average, grew at an average annual rate of 8.5% during the same period (1921-1946). Keynes was able to consistently generate alpha, exceeding the market’s overall returns.
The plot below shows the relationship scatterplot of the maket returns vs Keynes portfolio returns. The correlation coefficient is 0.76, which is high, when markets are doing well, Keynes did also well.
plot(Market, Keynes, xlab="Market Return", ylab="Keynes Excess Return",col=20, pch=16)
The correlation coefficient is
Code
cor(Keynes,Market) 0.74Now we fit a liner regression model \[ \text{Keynes} = \alpha + \beta \text{Market} \]
plot(Market, Keynes, xlab="Market Return", ylab="Keynes Excess Return",col=20, pch=16)
model = lm(Keynes~Market)
abline(model, lwd=3)
# Extract the model coefficients
coef(model)(Intercept) Market
13.2 1.7 # summary(model)
model %>% tidy() %>% knitr::kable(digits=2)| term | estimate | std.error | statistic | p.value |
|---|---|---|---|---|
| (Intercept) | 13.2 | 4.75 | 2.8 | 0.01 |
| Market | 1.7 | 0.39 | 4.5 | 0.00 |
The intecept of the least squares line is \(\alpha = 13.2\), which is significantly higher than 0. This indicates that Keynes was able to generate higher returns than the market, even when the market was performing well. This is consistent with his value investing strategy, which allowed him to identify undervalued stocks and generate significant alpha.
Now we adjust of the risk-free returns abc calculate excess return.
Keynes = Keynes - Rate
Market = Market - Rate
modelnew = lm(Keynes~Market)
modelnew %>% tidy() %>% knitr::kable(digits=2)| term | estimate | std.error | statistic | p.value |
|---|---|---|---|---|
| (Intercept) | 14.5 | 4.69 | 3.1 | 0.01 |
| Market | 1.8 | 0.37 | 4.8 | 0.00 |
We see that after the adjustment, the intercept \(\alpha=14.46\) is now even larger.
13.2 Linear Regression
Regression analysis is the most widely used statistical tool for understanding relationships among variables. It provides a conceptually simple method for investigating functional relationships between one or more factors and an outcome of interest. This relationship is expressed in the form of an equation, which we call the model, connecting the response or dependent variable and one or more explanatory or predictor variable.
It is convenient to introduce a regression model using the language of probability and uncertainty. A regression model assumes that mean of output variable \(y\) depends linearly on predictors \(x_1,\ldots,x_p\) \[ y = \beta_0 + \beta_1 x + \ldots + \beta_p x_p + \epsilon,~ \text{where}~\epsilon \sim N(0, \sigma^2). \] Often, we use simpler dot-product notation \[ y = \beta^Tx + \epsilon, \] where \(\beta = (\beta_0,\beta_1,\ldots,\beta_p)\) is the vector regression coefficients and \(x = (1,x_1,\ldots,x_p)\) is the vector of predictors, with 1 appended to the beginning.
Line coefficients \(\beta_i\)s have the same interpretation as in the deterministic approach. However, the additional term \(\epsilon\) is a random variable that captures the uncertainty in the relationship between \(y\) and \(x\), it is called the error term or the residual. The error term is assumed to be normally distributed with mean zero and variance \(\sigma^2\). Thus, the linear regression model has a new parameter \(\sigma^2\) that models dispersion of \(y_i\) around the mean \(\beta^Tx\), let’s see an example.
13.3 Estimates and Intervals
In our housing example, we estimated the parameter \(\beta_1\) to be equal to 113.12 and made a conclusion that the the price of the house goes up by that amount when the lining area goes up by one unit. However, the estimated value is based on a sample. The sample is a result of well-designed data collection procedure and is representative of the population, and we should expect the estimated value to be close to the true value. However, the estimated value is not the true value of the parameter, but an estimate of it. The true value of the parameter is unknown and is the estimated value is subject to sampling error.
This means that the estimated value of the parameter is not the true value of the parameter, but an estimate of it. The true value of the parameter is unknown and can only be estimated from the sample data. The estimated value of the parameter is subject to sampling error, which is modeled by the normal distribution. The standard error of the estimate is a measure of the uncertainty in the estimated value of the parameter. The standard error is calculated from the sample data and is used to calculate confidence intervals and p-values for the estimated parameter.
used the lm function to estimate the parameters of the linear model. The estimated values of the parameters are given in the Estimate column of the output. The estimated value of the intercept is \(\hat \beta_0 = 13.44\) and the estimated value of the slope is \(\hat \beta_1 = 113.12\). These values are calculated using the least squares loss function, which minimizes the sum of squared differences between the predicted and actual values of the output variable. The estimated values of the parameters are subject to sampling error, which is modeled by the normal distribution. The standard error of the estimates is given in the Std. Error column of the output. The standard error is a measure of the uncertainty in the estimated values of the parameters. The t-statistic is the ratio of the estimated coefficient to its standard error. The p-value is the probability of observing a value at least as extreme as the one observed, assuming the null hypothesis is true. In this case, the p-value for the livingArea coefficient is less than 0.05, so we conclude that the coefficient is statistically significant. This means that the size of the house is a statistically significant predictor of the price. The Residual standard error is the standard deviation of the residuals \(\hat y_i - y_i,~i=1,\ldots,n\).
Example 13.3 (House Prices) Let’s go back to the Saratoga Houses dataset
d = read.csv("../data/SaratogaHouses.csv")
d$price = d$price/1000; d$livingArea = d$livingArea/1000
l = lm(price ~ livingArea, data=d)
summary(l)
Call:
lm(formula = price ~ livingArea, data = d)
Residuals:
Min 1Q Median 3Q Max
-277.0 -39.4 -7.7 28.4 553.3
Coefficients:
Estimate Std. Error t value Pr(>|t|)
(Intercept) 13.44 4.99 2.69 0.0072 **
livingArea 113.12 2.68 42.17 <2e-16 ***
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
Residual standard error: 69 on 1726 degrees of freedom
Multiple R-squared: 0.507, Adjusted R-squared: 0.507
F-statistic: 1.78e+03 on 1 and 1726 DF, p-value: <2e-16The output of the lm function has several components. Besides calculating the estimated values of the coefficients, given in the Estimate column, the method also calculates standard error (Std. Error) and t-statistic (t value) for each coefficient. The t-statistic is the ratio of the estimated coefficient to its standard error. The p-value (Pr(>|t|)) is the probability of observing a value at least as extreme as the one observed, assuming the null hypothesis is true. The null hypothesis is that the coefficient is equal to zero. If the p-value is less than 0.05, we typically reject the null hypothesis and conclude that the coefficient is statistically significant. In this case, the p-value for the livingArea coefficient is less than 0.05, so we conclude that the coefficient is statistically significant. This means that the size of the house is a statistically significant predictor of the price. The Residual standard error the standard deviation of the residuals \(\hat y_i - y_i,~i=1,\ldots,n\).
The estimated values of the parameters were calculated using least squares loss function discussed above. The residual standard error is also relatively easy to calculate from the model residuals \[ s_e = \sqrt{ \frac{1}{n-2} \sum_{i=1}^n ( \hat y_i - y_i )^2 }. \] Now the question is, how the p-value for the estimates was calculated? And why did we assume that \(\epsilon\) is normally distributed in the first place? The normality of \(\epsilon\) and as a consequence, the conditional normality of \(y \mid x \overset{iid}{\sim} N(\beta^Tx, \sigma^2)\) is easy to explain, it is simply due to mathematical convenience. Plus, this assumption happen to describe the reality well in a wide range of applications. One of those conveniences, is our ability to estimate to calculate mean and variance of the distribution of \(\hat \beta_0\) and \(\hat \beta_1\).
To understand how to calculate the p-values, we first notice that there is uncertainty about the values of the parameters \(\beta_i\)s. To get a feeling for the amount of variability in our experimentation. Imagine that we have two sample data sets. For example, we have housing data from two different realtor firms. Do you think the estimated value of price per square foot will be the same for both of those? The answer is no. Let’s demonstrate with an example, we simulate 20 data sets from the same distribution and estimate 20 different linear models.
set.seed(92) #Kuzy
d = read.csv("../data/SaratogaHouses.csv")
d$price = d$price/1000; d$livingArea = d$livingArea/1000
plot(d$livingArea, d$price, pch=20, col="blue", xlab="Living Area", ylab="Price")
for (i in 1:10) {
# Sample with replacement
dnew = d[sample(1:nrow(d),replace=T),]
# Fit a linear model
l = lm(price ~ livingArea, data=dnew, subset = sample(1:nrow(d),100))
abline(l, col="green", lwd=3)
}
Figure 13.1 shows the results of this simulation. We can see that the estimated coefficients \(\hat \beta_i\) are different for each of the 20 samples. This is due to the sampling error. The sampling error is the difference between the estimated value of a parameter and its true value. The value of \(\beta_1\) will differ from sample to sample. In other words, it will be a random variable. The sampling distribution of \(\beta_1\) describes how it varies over different samples with the \(x\) values fixed. Statistical view of linear regression allows us to calculate confidence and prediction intervals for estimated parameters. It turns out that when least squares principle is used, the estimated \(\hat\beta_1\) is normally distributed: \(\hat\beta_1 \sim N( \beta_1 , s_1^2 )\). Let’s see how we can derive this result.
The extension of the central limit theorem, sometimes called the Lindeberg CLT, states that a linear combination of independent random variables that satisfy some mild condition are approximately normally distributed. We can show that estimates of \((\beta_0\ldots,\beta_p)\) are linear combinations of the observed values of \(y\) and are therefore normally distributed. Indeed, if we write the linear regression model in matrix form \[ Y = X \beta + \epsilon, \] where \(Y\) is the vector of observed values of the dependent variable, \(X\) is the matrix of observed values of the independent variables, \(\beta\) is the vector of unknown parameters, and \(\epsilon\) is the vector of errors. Then, if we take the derivative of the loss function for linear regression and set it to zero, we get the following expression for the estimated parameters \[ \hat \beta = AY, \] where \(A = (X^TX)^{-1}X^T\). Due to Lindeberg central limit theorem, \(\hat \beta\) is normally distributed. This is a useful property that allows us to calculate confidence intervals and p-values for the estimated parameters.
Now, we need to compute the mean and variance of \(\hat \beta\). The mean is easy to compute, since the expectation of the sum is the sum of expectations, we have \[ \hat{\beta} = A(X\beta + \epsilon) \] \[ \hat{\beta} = \beta + A\epsilon \]
The expectation of \(\hat{\beta}\) is: \[ E[\hat{\beta}] = E[\beta + A\epsilon] = E[\beta] + E[A\epsilon] = \beta \] Since \(\beta\) is constant, and \(E[A\epsilon] = 0\) (\(E[\epsilon] = 0\)).
The variance is given by \[ Var(\hat{\beta}) = Var(A\epsilon) \] If we assume that \(\epsilon\) is independent of \(X\), we can write and elements of \(\epsilon\) are uncorrelated, we can write: \[ Var(\hat{\beta}) = AVar(\epsilon)A^T \] Given \(Var(\epsilon) = \sigma^2 I\), we have: \[ Var(\hat{\beta}) = \sigma^2 (X^TX)^{-1} \]
Putting together the expectation and variance, and the fact that we get the following distribution for \(\hat{\beta}\): \[ \hat{\beta} \sim N(\beta, \sigma^2 (X^TX)^{-1}). \]
Statistical approach to linear regression is useful. We can think of the estimated coefficients \(\hat \beta_i\) as an average amount of change in \(y\), when \(x_i\) goes up by one unit. Since this average was calculated using a sample data, it is subject to sampling error and the sampling error is modeled by the normal distribution. Assuming that residuals \(\epsilon\) are independently normally distributed with a variance that does not depend on \(x\) (homoscedasticity), we can calculate the mean and variance of the distribution of \(\hat \beta_i\). This is a useful property that allows us to calculate confidence intervals and p-values for the estimated parameters.
In summary, the statistical view of the linear regression model is useful for understanding the uncertainty associated with the estimated parameters. It also allows us to calculate confidence intervals and prediction intervals for the output variable.
- Average value of output \(y\) is a linear function of input \(x\) and lie on the straight line of regression \(\hat y_i = \beta^Tx_i\).
- The values of \(y\) are statistically independent.
- The true value of \(y = \hat y_i + \epsilon_i\) is a random variable, and it is normally distributed around the mean with variance \(\sigma^2\). This variance is the same for all values of \(y\).
- The estimated values of the parameters \(\hat \beta_i\) are calculated from observed data and are subject to the sampling error and we are not certain about them. This uncertainty is modeled by the normally distributed around the true values \(\beta\). Given that errors \(\epsilon_i\) are homoscedastic and independent, we have \(Var(\hat{\beta}) = \sigma^2 (X^TX)^{-1}\).
Again, consider a house example. Say in our data we have 10 houses with the same squire footage, say 2000. Now the third point states, that the prices of those houses should follow a normal distribution and if we are to compare prices of 2000 sqft houses and 2500 sqft houses, they will have the same standard deviation. The second point means that price of one house does not depend on the price of another house.
All of the assumptions in the regression model can be written using probabilist notations The looks like: \[ y \mid x \overset{iid}{\sim} N(\beta^Tx, \sigma^2). \]
In the case when we have only one predictor the variance of the estimated slope \(\hat \beta_1\) is given by \[ Var(\hat \beta_1) = \frac{\sigma^2}{\sum_{i=1}^n ( x_i - \bar{x} )^2 } = \frac{ \sigma^2 }{ (n-1) s_x^2 }, \] where \(s_x^2\) is the sample variance of \(x\). Thus, there are three factors that impact the size of standard error for \(\beta_1\): sample size (\(n\)), error variance (\(s^2\)), and \(x\)-spread, \(s_x\).
We can empirically demonstrate the sampling error by simulating several samples from the same distribution and estimating several linear models. We can see that the estimated coefficients \(\hat \beta_i\) are normally distributed around the true values \(\beta_i\). If we plot coefficients for 1000 different models, we can see that the empirical distribution resembles a normal distribution.
set.seed(92) #Kuzy
# Read housing data
d = read.csv("../data/SaratogaHouses.csv")
d$price = d$price/1000; d$livingArea = d$livingArea/1000
# Simulate 1000 samples
n = 1000
# Create a matrix to store the results
beta = matrix(0, nrow=n, ncol=2)
# Simulate 1000 samples
for (i in 1:n) {
# Sample with replacement
dnew = d[sample(1:nrow(d),replace=T),]
# Fit a linear model
l = lm(price ~ livingArea, data=dnew)
# Store the coefficients
beta[i,] = coef(l)
}
ind = 2
# Plot the results

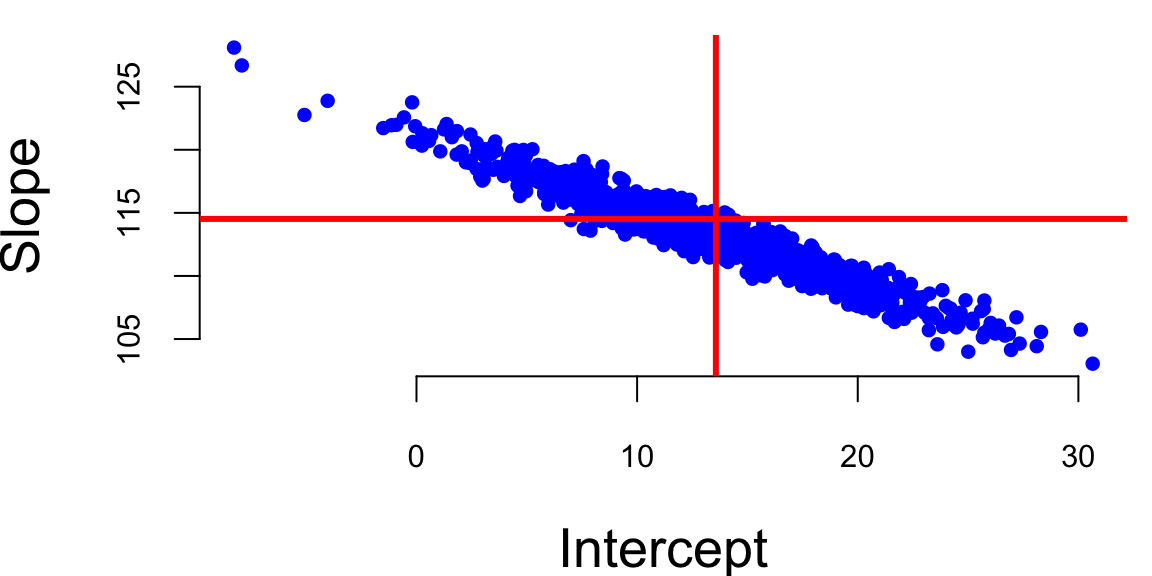

plot(beta[,1], beta[,2], pch=20, col="blue", xlab="Intercept", ylab="Slope")
abline(h=coef(l)[2], lwd=3, col="red")
abline(v=coef(l)[1], lwd=3, col="red")
X = cbind(1, d$livingArea)
# Calculate the variance of the coefficients
var = sigma(l)^2 * solve(t(X) %*% X)
varb = var[ind,ind]/0.63

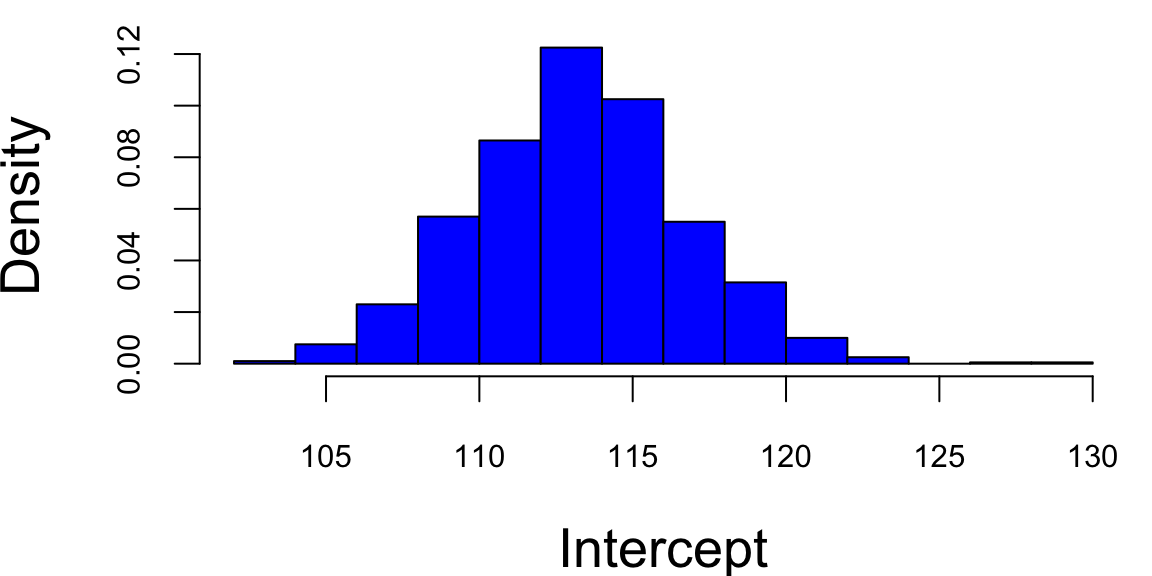

hist(beta[,ind], col="blue", xlab="Intercept", main="",freq=F)
bt = seq(80,140,0.1)Accounting for uncertainty in \(\hat \beta\)s we can calculate confidence intervals for the predicted average \(\hat y\). When we additionally account for the uncertainty in the predicted value \(\hat y\), we can calculate prediction intervals.
Another advantage of adopting a statistical view of the linear regression model is ability to quantify information about potential outliers. Outliers are points that are extreme relative to our model predictions. Recall, that residual is \(e_i = y_i- \hat y_i\). Since our predicted value \(\hat y_i\) follows a normal distribution, the residual also follows a normal distribution, since it is a difference of normal random variable \(\hat y_i\) and a constant \(y_i\). It easy to see that \[e_i \sim N(0, s_e^2),\] where \(s_e^2\) is an empirical estimate of the error’s variance.
Consider the relation between the fitted values \(\hat y_i\) and residuals \(e_i\). Our predictions are given by the line. The residual \(e_i\) and predicted value \(\hat y_i\) for the \(i\)th observation are related via \[y_i = \hat{y}_i + ( y_i - \hat{y}_i ) = \hat{y}_i + e_i\].
Residuals allow us to define outliers. They simply have large residuals. We re-scale the residuals by their standard errors. This lets us define \[r_i = \frac{ e_i }{ s_{ e} } =\frac{y_i - \hat{y}_i }{ s_{ e } }\] Since residuals follow normal distribution \(e \sim N(0,\sigma^2)\), in 95% of the time we expect the standardized residuals to satisfy \(- 2 < r_i < 2\). Any observation with is an extreme outlier, it is three sigmas away from the mean.
Another types of observations we are interested are the influential points. Those are are observations that affect the magnitude of our estimates \(\hat{\beta}\)’s. They are important to find as they typically have economic consequences. We will use to assess the significance of an influential point. Cook’s distance associated with sample \(i\) measure the change in estimated model parameters \(\hat \beta\) when sample \(i\) is removed from the training data set.
Intuitively, we model regression-back-to-the-mean effect. This is one of the most interesting statistical effects you’ll see in daily life. In statistics, regression does not mean “going backwards”, but rather the tendency for a variable that is extremely high or low to move closer to the average upon subsequent measurement. For example, Francis Galton, who was a cousin of Charles Darwin, in his study on regression to the mean height showed that if your parents are taller than the average, you’ll regress back to the average. While people might expect the children of tall parents to be even taller and the children of short parents to be even shorter, Galton found that this wasn’t the case. Instead, he observed that the heights of the children tended to be closer to the average height for the population. Galton termed this phenomenon “regression towards mediocrity” (now more commonly known as “regression to the mean”). It meant that extreme characteristics (in this case, height) in parents were likely to be less extreme (closer to the average) in their children. It is a classic example that helped introduce and explain this statistical concept. Galton’s finding was one of the first insights into what is now a well-known statistical phenomenon. It doesn’t imply that all individual cases will follow this pattern; rather, it’s a trend observed across a population. It’s important to understand that regression to the mean doesn’t suggest that extreme traits diminish over generations but rather that an extreme measurement is partly due to random variation and is likely to be less extreme upon subsequent measurement.
Another example was documented by Daniel Kahneman and Amos Tversky in their book Thinking, Fast and Slow. They found that when a person performs a task, their performance is partly due to skill and partly due to luck. They observed that when a person performs a task and achieves an extreme result, their subsequent performance is likely to be less extreme. Particularly they studied effect of criticism and praise used by Israeli Air Force fighter pilots trainers. After criticism, the low-scoring pilots were retested. Often, their scores improve. At first glance, this seems like a clear effect of feedback from the trainer. However, some of this improvement is likely a statistical artifact and demonstrates the regression to the mean effect.
Why? Those pilots who initially scored poorly were, statistically speaking, somewhat unlucky. Their low scores may have been due to a bad day, stress, or other factors. When retested, their scores are likely to be closer to their true skill level, which is closer to the average. This natural movement towards the average can give the illusion that the intervention (praise or criticism) was more effective than it actually was. Conversely, if the top performers were praised and retested, we might find their scores decrease slightly, not necessarily due to the inefficacy of the praise but due to their initial high scores being partly due to good luck or an exceptionally good day. In conclusion, in pilot training and other fields, it’s important to consider regression to the mean when evaluating the effectiveness of interventions. Without this consideration, one might draw incorrect conclusions about the impact of training or other changes.
Example 13.4 (Google vs S&P 500) We will demonstrate how we can use statistical properties of a linear regression model to understand the relationship between returns of a google stock and the S&P 500 index. We will use Capital Asset Pricing Model (CAPM) regression model to estimate the expected return of an investment into Google stock and to price the risk. The CAPM model is
\[ \mathrm{GOOG} = \alpha + \beta \mathrm{SP500} + \epsilon \] On the left hand side, we have the return that investors expect to earn from investing into Google stock. In the CAPM model, this return is typically modeled as a dependent variable.
The input variable SP500 represents the average return of the entire US market. Beta measures the volatility or systematic risk of a security or a portfolio in comparison to the market as a whole. A beta greater than 1 indicates that the security is more volatile than the market, while a beta less than 1 indicates it is less volatile. Alpha is the intercept of the regression line, it measures the excess return of the security over the market. The error term \(\epsilon\) captures the uncertainty in the relationship between the returns of Google stock and the market.
In a CAPM regression analysis, the goal is to find out how well the model explains the returns of a security based on its beta. This involves regressing the security’s excess returns (returns over the risk-free rate) against the excess returns of the market. The slope of the regression line represents the beta, and the intercept should ideally be close to the risk-free rate, although in practice it often deviates. This model helps in understanding the relationship between the expected return and the systematic risk of an investment.
Based on the uncertainty associated with the estimates for alpha and beta, we can formulate some of hypothesis tests, for example
- \(H_0 :\) is Google related to the market?
- \(H_0 :\) does Google out-perform the market in a consistent fashion?
getSymbols(Symbols = c("GOOG","SPY"),from='2017-01-03',to='2023-12-29') "GOOG" "SPY" gret = as.numeric(dailyReturn(GOOG))
spyret = as.numeric(dailyReturn(SPY))
l = lm(gret ~ spyret)
tidy(l) %>% knitr::kable(digits=4)| term | estimate | std.error | statistic | p.value |
|---|---|---|---|---|
| (Intercept) | 0.0003 | 0.0003 | 1.1 | 0.27 |
| spyret | 1.1706 | 0.0240 | 48.8 | 0.00 |

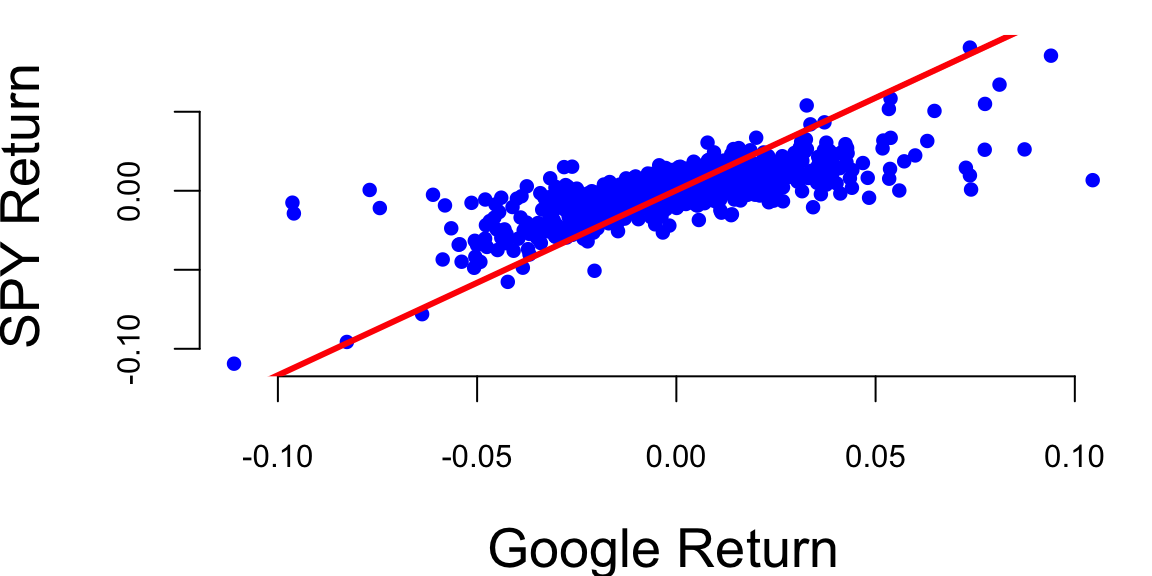

Google vs S&P 500 returns between 2017-2023
plot(gret, spyret, pch=20, col="blue", xlab="Google Return", ylab="SPY Return")
abline(l, lwd=3, col="red")
Here’s what we get after we fit the model using function
Our best estimates are \[ \hat \alpha = 0.0004 \; , \; \hat{\beta} = 1.01 \]
Now we can provide the results for hypothesis we set at he beginning. Given that the p-value for \(H_0: \beta = 0\) is <2e-16 we can reject the null hypothesis and conclude that Google is related to the market. The p-value for \(H_0: \alpha = 0\) is 0.06, which is grater than 0.05, so we cannot reject the null hypothesis and conclude that Google does not out-performs the market in a consistent fashion in the 2017-2023 period.
Further, we can answer some of the other important questions, such as how much will Google move if the market goes up \(10\)%?
alpha = coef(l)[1]
beta = coef(l)[2]
# Calculate the expected return
alpha + beta*0.1(Intercept)
0.12 However, if we look at the earlier period between 2005-2016 (the earlier days of Google) the results will be different.
getSymbols(Symbols = c("GOOG","SPY"),from='2005-01-03',to='2016-12-29'); "GOOG" "SPY" gret = as.numeric(dailyReturn(GOOG))
spyret = as.numeric(dailyReturn(SPY))
l = lm(gret ~ spyret)
tidy(l) %>% knitr::kable(digits=4)| term | estimate | std.error | statistic | p.value |
|---|---|---|---|---|
| (Intercept) | 0.0006 | 0.0003 | 2.2 | 0.03 |
| spyret | 0.9231 | 0.0230 | 40.1 | 0.00 |
plot(gret, spyret, pch=20, col="blue", xlab="Google Return", ylab="SPY Return")
abline(l, lwd=3, col="red")
In this period Google did consistently outperform the market. The p-value for \(H_0: \alpha = 0\) is 0.03.
13.4 CAPM Model for Yahoo! Stock
Rather than estimate \(\mu\) directly, the CAPM estimates the difference between \(\mu\) and the risk-free rate \(r_f\). This quantity \(\mu-r_f\) is known as the expected excess return (excess relative to a risk-free investment). The CAPM relates the expected excess return of a stock to that of an underlying benchmark, typically a broad-based market index. Let \(\mu_M\) and \(\sigma_M\) denote the return and volatility on the market index. The implication of CAPM is that there is a linear relationship between the expected excess return of a stock, \(\mu-r_f\), and the excess return of the market, \(\mu_M-r_f\).
\[
\text{Excess \; Return}_{\text{Stock}} = \beta \; \text{Excess \;
Return}_{\text{Market}}
\] \[
\mu-r_f = \beta(\mu_M - r_f )
\] Put simply, the expected excess return of a stock is \(\beta\) times the excess expected return of the market. Beta (\(\beta\)) is a measure of a stock’s risk in relation to the market. A beta of 1.3 implies that the excess return on the stock is expected to move up or down 30% more than the market. A beta bigger than one implies the stock is riskier than the market and goes up (and down) faster than the market goes up (and down). A beta less than one implies the stock is less risky than the market.
Using the CAPM, the expected return of the stock can now be defined as the risk free interest rate plus beta times the expected excess return of the market, \[ \mu = \text{Expected \; Return}_{\text{Stock}} = r_f+\beta (\mu_M-r_f) \] Beta is typically estimated from a regression of the individual stock’s returns on those of the market. The other parameters are typically measured as the historical average return on the market \(\mu_M\) and the yield on Treasury Bills \(r_f\). Together these form an estimate of \(\mu\). The volatility parameter \(\sigma\) is estimated by the standard deviation of historical returns.
Our qualitative discussion implicitly took the year as the unit of time. For our example, we make one minor change and consider daily returns so that \(\mu\) and \(\sigma\) are interpreted as a daily rate of return and daily volatility (or standard deviation). We use an annual risk-free rate of 5%; this makes a daily risk-free rate of .019%, \(r_f = 0.00019\), assuming there are 252 trading days in a year. A simple historical average is used to estimate the market return (\(\mu_M\)) for the Nasdaq 100. The average annual return is about 23%, with corresponding daily mean \(\mu_M = 0.00083\). A regression using daily returns from 1996-2000 leads to an estimate of \(\beta = 1.38\). Combining these (pieces) leads to an estimated expected return of Yahoo!, \(\mu_{Yahoo} = 0.00019+1.38(0.00083-0.00019) = 0.00107\) on a daily basis. Note that the CAPM model estimates a future return that is much lower than the observed rate over the last three-plus years of .42% per day or 289% per year.
To measure the riskiness of Yahoo! notice that the daily historical volatility is 5%, i.e. \(\sigma = 0.05\). On an annual basis this implies a volatility of \(\sigma \sqrt{T} = 0.05 \sqrt{252} = 0.79\), that is 79%. For comparison, the benchmark Nasdaq 100 has historical daily volatility 1.9% and an annual historical volatility of 30%. The estimates of all the parameters are recorded in Table 13.2.
| Asset | Expected return | Volatility | Regression coefft (s.e.) |
|---|---|---|---|
| Yahoo! | \(\mu = 0.00107\) | \(\sigma = 0.050\) | \(\beta = 1.38 (.07)\) |
| Nasdaq 100 | \(\mu_M = 0.00083\) | \(\sigma_M = 0.019\) | 1 |
| Treasury Bills | \(r_f = 0.00019\) | – | – |
13.5 Factor Regression and Feature Engineering
A linear model assumes that output variable is proportional to the input variable plus an offset. However, this is not always the case. Often, we need to transform input variables by combining multiple inputs into a single predictor, for example by taking a ratio or putting inputs on a different scale, e.g. log-scale. In machine learning, this process is called feature engineering.
One of the classic examples of feature engineering is Fama-French three-factor model which is used in asset pricing and portfolio management. The model states that asset returns depend on (1) market risk, (2) the outperforming of small versus big companies, and (3) the outperformance of high book/market versus small book/market companies, mathematically \[r = R_f + \beta(R_m - R_f) + b_s\cdot SMB + b_v\cdot HML + \alpha\] Here \(R_f\) is risk-free return, \(R_m\) is the return of market, \(SMB\) stands for "Small market capitalization Minus Big" and \(HML\) for "High book-to-market ratio Minus Low"; they measure the historic excess returns of small caps over big caps and of value stocks over growth stocks. These factors are calculated with combinations of portfolios composed by ranked stocks (BtM ranking, Cap ranking) and available historical market data.
13.5.1 Logarithmic and Power Transformations
Consider, the growth of the Apple stock between 2000 and 2024. With the exception of the 2008 financial crisis period and 2020 COVID 19 related declines, the stock price has been growing exponentially. Figure 13.3 shows the price of the Apple stock between 2000 and 2024. The price is closely related to the company’s growth.

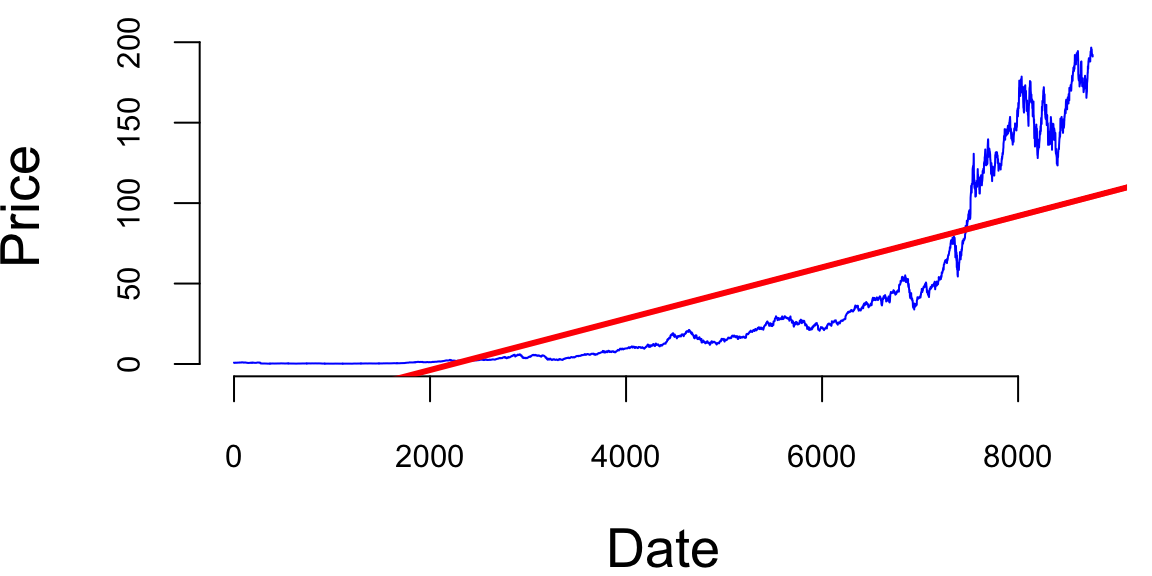

getSymbols(Symbols = "AAPL",from='2000-01-01',to='2023-12-31'); "AAPL"plot(AAPL$AAPL.Adjusted, type='l', col="blue", xlab="Date", ylab="Price")
The 2008 and 2020 declines are more related to extraneous factors, rather than the growth of the company. Thus, we can conclude that the overall growth of the company is exponential. Indeed, if we try to fit a linear model to the time-price data, we will see that the model does not fit the data well
time = index(AAPL) - start(AAPL)
plot(time,AAPL$AAPL.Adjusted, type='l', col="blue", xlab="Date", ylab="Price")
abline(lm(AAPL$AAPL.Adjusted ~ time), col="red", lwd=3)
Just by visual inspection we can see that a straight line will not be a good fit for this data. The growth of a successful company typically follows the rule of compounding. Compounding is a fundamental principle that describes how some quantity grows over time when this quantity increases by a fixed percentage periodically. This is a very common phenomenon in nature and business. For example, if two parents have 2.2 children on average, then the population increases by 10% every generation. Another example is growth of investment in a savings account.
A more intuitive example is probably an investment in a savings account. If you invest \(1000\) in a savings account with \(10\%\) annual interest rate and you get payed once a year, then your account value will be \(1100\) by the end of the year. However, if you get get payed \(n\) times a year, and initially invest \(y_0\) final value \(y\) of the account after \(t\) years will be \[ y = y_0 \times (1 + r/n)^{nt} \] where \(r\) is the annual interest rate. When you get payed every month (\(n=12\)), a traditional payout schedule used by banks, then \[ y = 1000 \times (1 + 0.1/12)^{12} = 1105. \] A value slightly higher than the annual payout of 1100.
The effect of compounding is minimal in the short term. However, the effect of compounding is more pronounced when the growth rate is higher and time periods are longer. For example at \(r=2\), \(n=365\) and 4-year period \(t=4\), you get \[ y = 1000 \times (1 + 2/365)^{3\times 365} = 2,916,565. \] Your account is close to 3 million dollars! Compared to \(n=1\) scenario \[ y = 1000 \times (1 + 2)^{4} = 81,000, \] when you will end up with mealy 81 thousand. This is why compounding is often referred to as the “eighth wonder of the world” in investing contexts, emphasizing its power in growing wealth over time.
In general, as \(n\) goes up, the growth rate of the quantity approaches the constant
n = 1:300
r = 1
plot(n, (1+r/n)^n, type='l', col="blue", xlab="n", ylab="Future Value")
abline(h=exp(r), col="red", lwd=3)
Figure 13.4 shows the growth of an investment in a savings account when \(n\) increases and return rate is \(100\%\) per year. We can see that the growth rate approaches the constant \(e \approx 2.72\) as \(n\) increases. \[ (1+r/n)^n \rightarrow e^r,~\text{as}~n \rightarrow \infty. \] This limit was first delivered by Leonhard Euler and the number \(e\) is known as Euler’s number.
Coming back to the growth of the Apple company, we can think of it growing at small constant rate every day. The relation between the time and size of Apple is multiplicative. Meaning when when time increases by one day, the size of the company increases by a small constant percentage. This is a multiplicative relation. In contrast, linear relation is additive, meaning that when time increases by one day, the size of the company increases by a constant amount. The exponential growth model is given by the formula \[ y = y_0 \times e^{\beta^Tx}. \] There are many business and natural science examples where multiplicative relation holds. IF we apply the \(\log\) function to both sides of the equation, we get \[ \log y = \log y_0 + \beta^Tx. \] This is a linear relation between \(\log y\) and \(x\). Thus, we can use linear regression to estimate the parameters of the exponential growth model by putting the output variable \(y\) on the log-scale.
Another example of nonlinear relation that can be analyzed using linear regression is when variables are related via a power law. This concept helps us modeling proportional relationships or ratios. In a multiplicative relationship, when one variable changes on a percent scale, the other changes in a directly proportional manner, as long as the multiplying factor remains constant. For example, the relation between the size of a city and the number of cars registered in the city is given by a power law. When the size of the city doubles, the number of cars registered in the city is also expected to double. The power law model is given by the formula \[ y = \beta_0 x^{\beta_1}. \] If we apply the \(\log\) function to both sides of the equation, we get \[ \log y = \log \beta_0 + \beta_1 \log x. \] This is a linear relation between \(\log y\) and \(\log x\). Thus, we can use linear regression to estimate the parameters of the power law model by putting the output variable \(y\) and input variable \(x\) on the log-scale.
However, there are several caveats when putting variables on the log-scale. We need to make sure that the variable is positive. It means that we cannot apply log transformations to dummy or count variables.
Example 13.5 (World’s Smartest Mammal) We will demonstrate the power relation using the data on the brain (measured in grams) and body (measured in kilograms) weights for 62 mammal species. The data was collected by Harry J. Jerison in 1973. The data set contains the following variables:
mammals = read.csv("../data/mammals.csv")
knitr::kable(head(mammals))| Mammal | Brain | Body |
|---|---|---|
| African_elephant | 5712.0 | 6654.00 |
| African_giant_pouched_rat | 6.6 | 1.00 |
| Arctic_Fox | 44.5 | 3.38 |
| Arctic_ground_squirrel | 5.7 | 0.92 |
| Asian_elephant | 4603.0 | 2547.00 |
| Baboon | 179.5 | 10.55 |
Let’s build a linear model.
attach(mammals)
model = lm(Brain~Body)
plot(Body,Brain, pch=21, bg="lightblue")
abline(model, col="red", lwd=3)
We see a few outliers with suggests that normality assumption is violated. We can check the residuals by plotting residuals against fitted values and plotting fitted vs true values.
plot(model$fitted.values, model$residuals, pch=21, bg="lightblue", xlab="Fitted y", ylab="Residuals")
abline(h=0, col="red", lwd=3)
plot(Brain, model$fitted.values, pch=21, bg="lightblue", xlab="True y", ylab="Fitted y")
abline(a=0,b=1, col="red", lwd=3)
Remember, that residuals should roughly follow a normal distribution with mean zero and constant variance. We can see that the residuals are not normally distributed and the variance increases with the fitted values. This is a clear indication that we need to transform the data. We can try a log-log transformation.
model = lm(log(Brain)~log(Body))
model %>% tidy() %>% knitr::kable(digits=2)| term | estimate | std.error | statistic | p.value |
|---|---|---|---|---|
| (Intercept) | 2.18 | 0.11 | 20 | 0 |
| log(Body) | 0.74 | 0.03 | 23 | 0 |
plot(model$fitted.values, model$residuals, pch=21, bg="lightblue")
abline(h=0, col="red", lwd=3)
plot(log(Brain), model$fitted.values, pch=21, bg="lightblue")
abline(a=0,b=1, col="red", lwd=3)
That is much better! The residuals variance is constant and the plot of fitted vs true values shows a linear relationship. The log-log model is given by the formula \[ \log \mathrm{Brain} = 2.18 + 0.74 \log \mathrm{Body}. \] seem to achieve two important goals, namely linearity and constant variance. The coefficients are highly significant.
Although the log-log model fits the data rather well, there are a couple of outliers there. Let us print the observations with the largest residuals.
# res = rstudent(model)
res = model$residuals/sd(model$residuals)
outliers = order(res,decreasing = T)[1:10]
cbind(mammals[outliers,],
Std.Res = res[outliers], Residual=model$residuals[outliers],
Fit = exp(model$fitted.values[outliers])) %>% knitr::kable(digits=2)| Mammal | Brain | Body | Std.Res | Residual | Fit | |
|---|---|---|---|---|---|---|
| 11 | Chinchilla | 64 | 0.42 | 3.41 | 2.61 | 4.7 |
| 34 | Man | 1320 | 62.00 | 2.53 | 1.93 | 190.7 |
| 50 | Rhesus_monkey | 179 | 6.80 | 2.06 | 1.58 | 36.9 |
| 6 | Baboon | 180 | 10.55 | 1.64 | 1.26 | 51.1 |
| 42 | Owl_monkey | 16 | 0.48 | 1.44 | 1.10 | 5.1 |
| 10 | Chimpanzee | 440 | 52.16 | 1.26 | 0.96 | 167.7 |
| 27 | Ground_squirrel | 4 | 0.10 | 1.18 | 0.91 | 1.6 |
| 43 | Patas_monkey | 115 | 10.00 | 1.11 | 0.85 | 49.1 |
| 60 | Vervet | 58 | 4.19 | 1.06 | 0.81 | 25.7 |
| 3 | Arctic_Fox | 44 | 3.38 | 0.92 | 0.71 | 22.0 |
There are two outliers, the Chinchilla and the Human, both have disproportionately large brains!
In fact, the Chinchilla has the largest standartised residual of 3.41. Meaning that predicted value of 4.7 g is 3.41 standard diviaitons away from the recorded value of 64 g. This suggests that the Chinchilla is a master race of supreme intelligence! However, afer checking more carefully we realized that there was a recording error and the acual weight of an average Chinchilla’s brain is 6.4. We mistyped the decimal separator! Thus the actual residual is 0.4.
abs(model$fitted.values[11] - log(6.4))/sd(model$residuals) 11
0.4 In reality Chinchilla’s brain is not far from an average mamal of this size!
13.6 Interactions
In many situations, \(X_1\) and \(X_2\) interact when predicting \(Y\). An interaction occurs when the effect of one independent variable on the dependent variable changes at different levels of another independent variable. For example, consider a study analyzing the effect of study hours \(X_1\) and a tutoring program \(X_2\), a binary variable where 0 = no tutoring, 1 = tutoring) on test scores \(Y\). Without an interaction term, we assume the effect of study hours on test scores is the same regardless of tutoring. With an interaction term, we can explore whether the effect of study hours on test scores is different for those who receive tutoring compared to those who do not. Here are a few more examples when there is potential interraction.
- Does gender change the effect of education on wages?
- Do patients recover faster when taking drug A?
- How does advertisement affect price sensitivity?
- Interactions are useful. Particularly with dummy variables.
- We build a kitchen-sink model with all possible dummies (day of the week, gender,...)
If we think that the effect of \(X_1\) on \(Y\) depends on the value of \(X_2\), we model it using a liner relation \[ \beta_1 = \beta_{10} + \beta_{11} X_2 \] and the model without interaction \(Y = \beta_0 + \beta_1 X_1 + \beta_2 X_2\) becomes \[ Y = \beta_0 + \beta_1 X_1 + \beta_2 X_2 + \beta_3 X_1 X_2 + \epsilon. \] The interaction term captures the effect of \(X_1\) on \(Y\) when \(X_2=1\). The coefficient \(\beta_3\) is the difference in the effect of \(X_1\) on \(Y\) when \(X_2=1\) and \(X_2=0\). If \(\beta_3\) is significant, then there is an interaction effect. If \(\beta_3\) is not significant, then there is no interaction effect.
In R:
model = lm(y = x1 * x2)gives \(X_1+X_2+X_1X_2\), and
model = lm(y = x1:x2)gives only \(X_1 X_2\)
The coefficients \(\beta_1\) and \(\beta_2\) are marginal effects.
If \(\beta_3\) is significant there’s an interaction effect and ee leave \(\beta_1\) and \(\beta_2\) in the model whether they are significant or not.
\(X_1\) and \(D\) dummy
- \(X_2 = D\) is a dummy variable with values of zero or one.
- Model: typically we run a regression of the form \[Y = \beta_0 + \beta_1 X_1 + \beta_2 X_1 \star D + \epsilon\]
- The coefficient \(\beta_1 + \beta_2\) is the effect of \(X_1\) when \(D=1\). The coefficient \(\beta_1\) is the effect when \(D=0\).
Example 13.6 (Orange Juice)
oj = read.csv("./../data/oj.csv")
knitr::kable(oj[1:5,1:10], digits=2)| store | brand | week | logmove | feat | price | AGE60 | EDUC | ETHNIC | INCOME |
|---|---|---|---|---|---|---|---|---|---|
| 2 | tropicana | 40 | 9.0 | 0 | 3.9 | 0.23 | 0.25 | 0.11 | 11 |
| 2 | tropicana | 46 | 8.7 | 0 | 3.9 | 0.23 | 0.25 | 0.11 | 11 |
| 2 | tropicana | 47 | 8.2 | 0 | 3.9 | 0.23 | 0.25 | 0.11 | 11 |
| 2 | tropicana | 48 | 9.0 | 0 | 3.9 | 0.23 | 0.25 | 0.11 | 11 |
| 2 | tropicana | 50 | 9.1 | 0 | 3.9 | 0.23 | 0.25 | 0.11 | 11 |
model = lm(logmove ~ log(price)*feat, data=oj)
model %>% tidy() %>% knitr::kable(digits=2)| term | estimate | std.error | statistic | p.value |
|---|---|---|---|---|
| (Intercept) | 9.66 | 0.02 | 588 | 0 |
| log(price) | -0.96 | 0.02 | -51 | 0 |
| feat | 1.71 | 0.03 | 56 | 0 |
| log(price):feat | -0.98 | 0.04 | -23 | 0 |
model = lm(log(price)~ brand-1, data = oj)
model %>% tidy() %>% knitr::kable(digits=2)| term | estimate | std.error | statistic | p.value |
|---|---|---|---|---|
| branddominicks | 0.53 | 0 | 254 | 0 |
| brandminute.maid | 0.79 | 0 | 382 | 0 |
| brandtropicana | 1.03 | 0 | 500 | 0 |
brandcol <- c("green","red","gold")
oj$brand = factor(oj$brand)
boxplot(log(price) ~ brand, data=oj, col=brandcol)
plot(logmove ~ log(price), data=oj, col=brandcol[oj$brand], pch=20)
- 83 Chicagoland Stores (Demographic info for each)
- Price, sales (log units moved), and whether advertised (feat)
Orange Juice: Price vs Sales
Orange Juice: Price vs log(Sales)
plot(logmove ~ price, data=oj, col=brandcol[oj$brand], pch=16, cex=0.5, ylab="log(move)")
Orange Juice: Price vs log(Sales)
l1 <- loess(logmove ~ price, data=oj, span=2)
smoothed1 <- predict(l1)
ind = order(oj$price)
plot(logmove ~ price, data=oj, col=brandcol[oj$brand], pch=16, cex=0.5, ylab="log(move)")
lines(smoothed1[ind], x=oj$price[ind], col="blue", lwd=2)
Orange Juice: log(Price) vs log(Sales)
plot(logmove ~ log(price), data=oj, col=brandcol[oj$brand], pch=16, cex=0.5, ylab="log(move)")
l2 <- lm(logmove ~ log(price), data=oj)
smoothed2 <- predict(l2)
ind = order(oj$price)
lines(smoothed2[ind], x=log(oj$price[ind]), col="blue", lwd=2)
Why? Multiplicative (rather than additive) change.
Now we are interested in how does advertisement affect price sensitivity?
Original model \[ \log(\mathrm{sales}) = \beta_0 + \beta_1\log(\mathrm{price}) + \beta_2 \mathrm{feat}. \] If we feature the brand (in-store display promo or flyer ad), does it affect price sensitivity \(\beta_1\)? If we assume it does \[ \beta_1 = \beta_3 + \beta_4\mathrm{feat}. \] The new model is \[ \log(\mathrm{sales}) = \beta_0 + (\beta_3 + \beta_4\mathrm{feat})\log(\mathrm{price}) + \beta_2 \mathrm{feat}. \] After expanding \[ \log(\mathrm{sales}) = \beta_0 + \beta_3\log(\mathrm{price}) + \beta_4\mathrm{feat}*\log(\mathrm{price}) + \beta_2 \mathrm{feat}. \]
## and finally, consider 3-way interactions
ojreg <- lm(logmove ~ log(price)*feat, data=oj)
ojreg %>% tidy() %>% knitr::kable(digits=2)| term | estimate | std.error | statistic | p.value |
|---|---|---|---|---|
| (Intercept) | 9.66 | 0.02 | 588 | 0 |
| log(price) | -0.96 | 0.02 | -51 | 0 |
| feat | 1.71 | 0.03 | 56 | 0 |
| log(price):feat | -0.98 | 0.04 | -23 | 0 |
lm(logmove ~ log(price), data=oj) %>% tidy() %>% knitr::kable(digits=2)| term | estimate | std.error | statistic | p.value |
|---|---|---|---|---|
| (Intercept) | 10.4 | 0.02 | 679 | 0 |
| log(price) | -1.6 | 0.02 | -87 | 0 |
lm(logmove ~ log(price)+feat + brand, data=oj) %>% tidy() %>% knitr::kable(digits=2)| term | estimate | std.error | statistic | p.value |
|---|---|---|---|---|
| (Intercept) | 10.28 | 0.01 | 708 | 0 |
| log(price) | -2.53 | 0.02 | -116 | 0 |
| feat | 0.89 | 0.01 | 85 | 0 |
| brandminute.maid | 0.68 | 0.01 | 58 | 0 |
| brandtropicana | 1.30 | 0.01 | 88 | 0 |
lm(logmove ~ log(price)*feat, data=oj) %>% tidy() %>% knitr::kable(digits=2)| term | estimate | std.error | statistic | p.value |
|---|---|---|---|---|
| (Intercept) | 9.66 | 0.02 | 588 | 0 |
| log(price) | -0.96 | 0.02 | -51 | 0 |
| feat | 1.71 | 0.03 | 56 | 0 |
| log(price):feat | -0.98 | 0.04 | -23 | 0 |
lm(logmove ~ brand-1, data=oj) %>% tidy() %>% knitr::kable(digits=2)| term | estimate | std.error | statistic | p.value |
|---|---|---|---|---|
| branddominicks | 9.2 | 0.01 | 885 | 0 |
| brandminute.maid | 9.2 | 0.01 | 889 | 0 |
| brandtropicana | 9.1 | 0.01 | 879 | 0 |
Advertisement increases price sensitivity from -0.96 to -0.958 - 0.98 = -1.94!
Why?
One of the reasons is that the price was lowered during the Ad campaign!
doj = oj %>% filter(brand=="dominicks")
par(mfrow=c(1,3), mar=c(4.2,4.6,2,1))
boxplot(price ~ feat, data = oj[oj$brand=="dominicks",], col=c(2,3), main="dominicks", ylab="Price ($)")
boxplot(price ~ feat, data = oj[oj$brand=="minute.maid",], col=c(2,3), main="minute.maid")
boxplot(price ~ feat, data = oj[oj$brand=="tropicana",], col=c(2,3), main="tropicana")
0 = not featured, 1 = featured
13.7 Dummies
We want to understand effect of the brand on the sales \[\log(\mathrm{sales}) = \beta_0 + \beta_1\log(\mathrm{price}) + \xcancel{\beta_2\mathrm{brand}}\]
But brand is not a number!
How can you use it in your regression equation?
We introduce dummy variables
| Brand | Intercept | brandminute.maid | brandtropicana |
|---|---|---|---|
| minute.maid | 1 | 1 | 0 |
| tropicana | 1 | 0 | 1 |
| dominicks | 1 | 0 | 0 |
\[\log(\mathrm{sales}) = \beta_0 + \beta_1\log(\mathrm{price}) + \beta_{21}\mathrm{brandminute.maid} + \beta_{22}\mathrm{brandtropicana}\]
R will automatically do it it for you
print(lm(logmove ~ log(price)+brand, data=oj))
Call:
lm(formula = logmove ~ log(price) + brand, data = oj)
Coefficients:
(Intercept) log(price) brandminute.maid brandtropicana
10.83 -3.14 0.87 1.53 \[\log(\mathrm{sales}) = \beta_0 + \beta_1\log(\mathrm{price}) + \beta_3\mathrm{brandminute.maid} + \beta_4\mathrm{brandtropicana}\]
\(\beta_3\) and \(\beta_4\) are “change relative to reference" (dominicks here).
How does brand affect price sensitivity?
Interactions: logmove ~ log(price) * brand
No Interactions: logmove ~ log(price) + brand
| Parameter | Interactions | No Interactions |
|---|---|---|
| (Intercept) | 10.95 | 10.8288 |
| log(price) | -3.37 | -3.1387 |
| brandminute.maid | 0.89 | 0.8702 |
| brandtropicana | 0.96239 | 1.5299 |
| log(price):brandminute.maid | 0.057 | |
| log(price):brandtropicana | 0.67 |
Example 13.7 (Golf Performance Data) Dave Pelz has written two best-selling books for golfers, Dave Pelz’s Short Game Bible, and Dave Pelz’s Putting Bible.
Dave Pelz was formerly a “rocket scientist” (literally) Data analytics helped him refine his analysis It’s the short-game that matters!
The optimal speed for a putt Best chance to make the putt is one that will leave the ball \(17\) inches past the hole, if it misses.
Golf Data
Year-end performance data on 195 players from the 2000 PGA Tour.
nevents, the number of official PGA events included in the statisticsmoney, the official dollar winnings of the player
drivedist, the average number of yards driven on par 4 and par 5 holesgir, greens in regulation, measured as the percentage of time that the first (tee) shot on a par 3 hole ends up on the green, or the second shot on a par 4 hole ends up on the green, or the third shot on a par 5 hole ends up on the green
avgputts, which is the average number of putts per round.
Analyze these data to see which of nevents, rivedist, gir, avgputts is most important for winning money.
Regression of Money on all explanatory variables:
d00 = read_csv("../data/pga-2000.csv")
d18 = read_csv("../data/pga-2018.csv")model18 = lm(money ~ nevents + drivedist + gir + avgputts, data=d18)
model00 = lm(money ~ nevents + drivedist + gir + avgputts, data=d00)
model00 %>% tidy() %>% knitr::kable(digits=2)| term | estimate | std.error | statistic | p.value |
|---|---|---|---|---|
| (Intercept) | 1.5e+07 | 4206466 | 3.5 | 0.00 |
| nevents | -3.0e+04 | 11183 | -2.7 | 0.01 |
| drivedist | 2.1e+04 | 6913 | 3.1 | 0.00 |
| gir | 1.2e+05 | 17429 | 6.9 | 0.00 |
| avgputts | -1.5e+07 | 2000905 | -7.6 | 0.00 |
\(R^2 = 50\)%
Residuals
arrows(x0 = 7.5,y0 = 20,x1 = 8.5,y1 = 2,length = 0.1)
text(x = 7,y = 22,labels = "Tiger Woods", cex=1.5)
Regression
Transform with log(Money) as it has much better residual diagnostic plots.
m = lm(formula = log(money) ~ nevents + drivedist + gir + avgputts, data = d00)
summary(m)
Call:
lm(formula = log(money) ~ nevents + drivedist + gir + avgputts,
data = d00)
Residuals:
Min 1Q Median 3Q Max
-1.5438 -0.3655 -0.0058 0.3968 1.9262
Coefficients:
Estimate Std. Error t value Pr(>|t|)
(Intercept) 36.14923 3.57763 10.10 <2e-16 ***
nevents -0.00899 0.00951 -0.94 0.346
drivedist 0.01409 0.00588 2.40 0.018 *
gir 0.16567 0.01482 11.18 <2e-16 ***
avgputts -21.12875 1.70178 -12.42 <2e-16 ***
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
Residual standard error: 0.57 on 190 degrees of freedom
Multiple R-squared: 0.671, Adjusted R-squared: 0.664
F-statistic: 96.9 on 4 and 190 DF, p-value: <2e-16\(R^2 = 67\)%. There’s still \(33\)% of variation to go
Residuals for log(Money)
par(mar = c(4,4.5,0,0),mfrow=c(1,1))
summary(model00log)
Call:
lm(formula = log(money) ~ nevents + drivedist + gir + avgputts,
data = d00)
Residuals:
Min 1Q Median 3Q Max
-1.5438 -0.3655 -0.0058 0.3968 1.9262
Coefficients:
Estimate Std. Error t value Pr(>|t|)
(Intercept) 36.14923 3.57763 10.10 <2e-16 ***
nevents -0.00899 0.00951 -0.94 0.346
drivedist 0.01409 0.00588 2.40 0.018 *
gir 0.16567 0.01482 11.18 <2e-16 ***
avgputts -21.12875 1.70178 -12.42 <2e-16 ***
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
Residual standard error: 0.57 on 190 degrees of freedom
Multiple R-squared: 0.671, Adjusted R-squared: 0.664
F-statistic: 96.9 on 4 and 190 DF, p-value: <2e-16hist(rstandard(model00log), breaks=20, col="lightblue", xlab = "Standartized Residual", main="")
arrows(x0 = 3,y0 = 20,x1 = 3.2,y1 = 2,length = 0.1)
text(x = 3,y = 22,labels = "Tiger Woods", cex=1.5)
Regression: Variable selection
\(t\)-stats for nevents is \(<1.5\).
lm(formula = log(money) ~ drivedist + gir + avgputts, data = d00)
Call:
lm(formula = log(money) ~ drivedist + gir + avgputts, data = d00)
Coefficients:
(Intercept) drivedist gir avgputts
36.1737 0.0146 0.1658 -21.3684 The fewer the putts the better golfer you are. Duh!
avgputts per round is hard to decrease by one!
Evaluating the Coefficients
Greens in Regulation (GIR) has a \(\hat{\beta} = 0.17\). If I can increase my GIR by one, I’ll earn \(e^{0.17} = 1.18\)% An extra \(18\)%
DriveDis has a \(\hat{\beta} = 0.014\). A \(10\) yard improvement, I’ll earn \(e^{0.014 \times 10} =e^{0.14} = 1.15\)% An extra \(15\)%
Caveat: Everyone has gotten better since 2000!
Main Findings
Tiger was \(9\) standard deviations better than the model.
Taking
logsofMoneyhelps the residuals!An exponential model seems to fit well. The residual diagnostics look good
The \(t\)-ratios for
neventsare under \(1.5\).
Over-Performers
Outliers: biggest over and under-performers in terms of money winnings, compared with the performance statistics.
Woods, Mickelson, and Els won major championships by playing well when big money prizes were available.
Over-Performers
| name | money | Predicted | Error | |
|---|---|---|---|---|
| 1 | Tiger Woods | 9188321 | 3584241 | 5604080 |
| 2 | Phil Mickelson | 4746457 | 2302171 | 2444286 |
| 3 | Ernie Els | 3469405 | 1633468 | 1835937 |
| 4 | Hal Sutton | 3061444 | 1445904 | 1615540 |
| 20 | Notah Begay III | 1819323 | 426061 | 1393262 |
| 182 | Steve Hart | 107949 | -1186685 | 1294634 |
Under-Performers
Underperformers are given by large negative residuals Glasson and Stankowski should win more money.
| name | money | Predicted | Error | |
|---|---|---|---|---|
| 47 | Fred Couples | 990215 | 1978477 | -988262 |
| 52 | Kenny Perry | 889381 | 1965740 | -1076359 |
| 70 | Paul Stankowski | 669709 | 1808690 | -1138981 |
| 85 | Bill Glasson | 552795 | 1711530 | -1158735 |
| 142 | Jim McGovern | 266647 | 1397818 | -1131171 |
Lets look at 2018 data, the highest earners are
| name | nevents | money | drivedist | gir | avgputts |
|---|---|---|---|---|---|
| Justin Thomas | 23 | 8694821 | 312 | 69 | 1.7 |
| Dustin Johnson | 20 | 8457352 | 314 | 71 | 1.7 |
| Justin Rose | 18 | 8130678 | 304 | 70 | 1.7 |
| Bryson DeChambeau | 26 | 8094489 | 306 | 70 | 1.8 |
| Brooks Koepka | 17 | 7094047 | 313 | 68 | 1.8 |
| Bubba Watson | 24 | 5793748 | 313 | 68 | 1.8 |
Overperformers
| name | money | Predicted | Error | |
|---|---|---|---|---|
| 1 | Justin Thomas | 8694821 | 5026220 | 3668601 |
| 2 | Dustin Johnson | 8457352 | 6126775 | 2330577 |
| 3 | Justin Rose | 8130678 | 4392812 | 3737866 |
| 4 | Bryson DeChambeau | 8094489 | 3250898 | 4843591 |
| 5 | Brooks Koepka | 7094047 | 4219781 | 2874266 |
| 6 | Bubba Watson | 5793748 | 3018004 | 2775744 |
| 9 | Webb Simpson | 5376417 | 2766988 | 2609429 |
| 11 | Francesco Molinari | 5065842 | 2634466 | 2431376 |
| 12 | Patrick Reed | 5006267 | 2038455 | 2967812 |
| 84 | Satoshi Kodaira | 1471462 | -1141085 | 2612547 |
Underperformers
| name | money | Predicted | Error | |
|---|---|---|---|---|
| 102 | Trey Mullinax | 1184245 | 3250089 | -2065844 |
| 120 | J.T. Poston | 940661 | 3241369 | -2300708 |
| 135 | Tom Lovelady | 700783 | 2755854 | -2055071 |
| 148 | Michael Thompson | 563972 | 2512330 | -1948358 |
| 150 | Matt Jones | 538681 | 2487139 | -1948458 |
| 158 | Hunter Mahan | 457337 | 2855898 | -2398561 |
| 168 | Cameron Percy | 387612 | 3021278 | -2633666 |
| 173 | Ricky Barnes | 340591 | 3053262 | -2712671 |
| 176 | Brett Stegmaier | 305607 | 2432494 | -2126887 |
Findings
Here’s three interesting effects:
Tiger Woods is \(8\) standard deviations better!
Increasing driving distance by \(10\) yards makes you \(15\)% more money
Increasing GIR by one makes you \(18\)% more money.
Detect Under- and Over-Performers
Go Play!!
