16  Model Selection

When you have eliminated impossible, whatever remains, however improbable, must be the truth.” - Sherlock Holmes

What makes a good model? If the goal is prediction, then the model is as good as its prediction. The easiest way to visualize the quality of the prediction is to plot \(y\) vs \(\hat y\). In the case of the linear regression model, the prediction interval is defined by \[ s\sqrt{1+\frac{1}{n}+\frac{(x-\bar x)^2}{\sum_{i=1}^n(x_i-\bar x)^2}} \] where \(s\) is the standard deviation of the residuals. The prediction interval is the confidence interval for the prediction. The prediction interval is wider than the confidence interval because it includes the uncertainty in the prediction.

The bias-variance tradeoff is a fundamental property of statistical models. The bias is the difference between the expected value of the prediction and the true value \(y-\hat y\). The variance is the variance of the prediction. The bias-variance tradeoff says that the bias and variance are inversely related. A model with high bias has low variance and a model with low bias has high variance. The bias-variance tradeoff is a consequence of the fact that the expected value of the prediction is the sum of the bias and the variance.
\[ MSE = E(y-\hat y)^2 = E(y-\mathbb{E}(\hat y))^2 + E(\mathbb{E}(\hat y)-\hat y)^2 \] The bias-variance tradeoff is a consequence of the fact that the expected value of the prediction is the sum of the bias and the variance.

16.1 Exploratory Data Analysis

Before deciding on a parametric model for a dataset. There are several tools that we use to choose the appropriate model. These include

  1. Theoretical assumptions underlying the distribution (our prior knowledge about the data)
  2. Exploratory data analysis
  3. Formal goodness-of-fit tests

The two most common tools for exploratory data analysis are Q-Q plot, scatter plots and bar plots/histograms.

A Q-Q plot simply compares the quantiles of your data with the quantiles of a theoretical distribution (like normal, exponential, etc.). Quantile is the fraction (or percent) of points below the given value. That is, the \(i\)-th quantile is the point \(x\) for which \(i\)% of the data lies below \(x\). On a Q-Q plot, if the two data sets come from a population with the same distribution, we should see the points forming a line that’s roughly straight. More precisely, if the two data sets \(x\) and \(y\) come from the same distribution, then the points \((x_{(i)}, y_{(i)})\) should lie roughly on the line \(y = x\). If \(y\) comes from a distribution that’s linear in \(x\), then the points \((x_{(i)}, y_{(i)})\) should lie roughly on a line, but not necessarily on the line \(y = x\).

Example 16.1 (Normal Q-Q plot) Figure 16.1 shows the normal Q-Q plot for the Data on birth weights of babies born in a Brisbane hospital on December 18, 1997. The data set contains 44 records. A more detailed description of the data set can be found in UsingR manual.

babyboom = read.csv("../data/babyboom.csv")
qqnorm(babyboom$wt)
qqline(babyboom$wt)

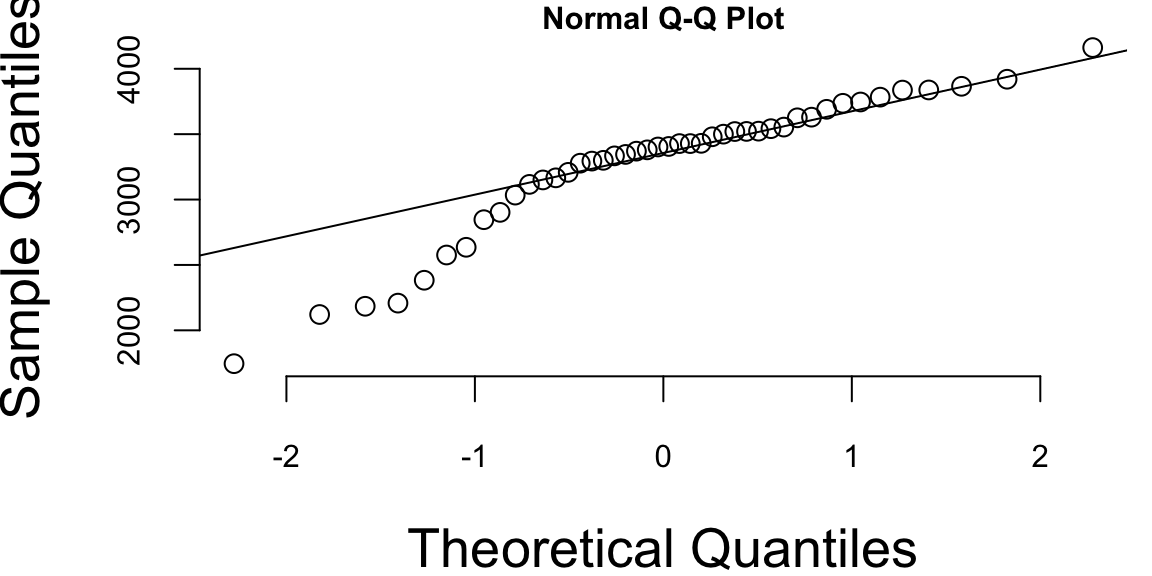

Figure 16.1: Normal Q-Q plot of baby weights

Visually, the answer to answer the question “Are Birth Weights Normally Distributed?” is no. We can see that on the left side of the plot the points are below the line. This indicates that the data is skewed to the left. The data is not normally distributed.

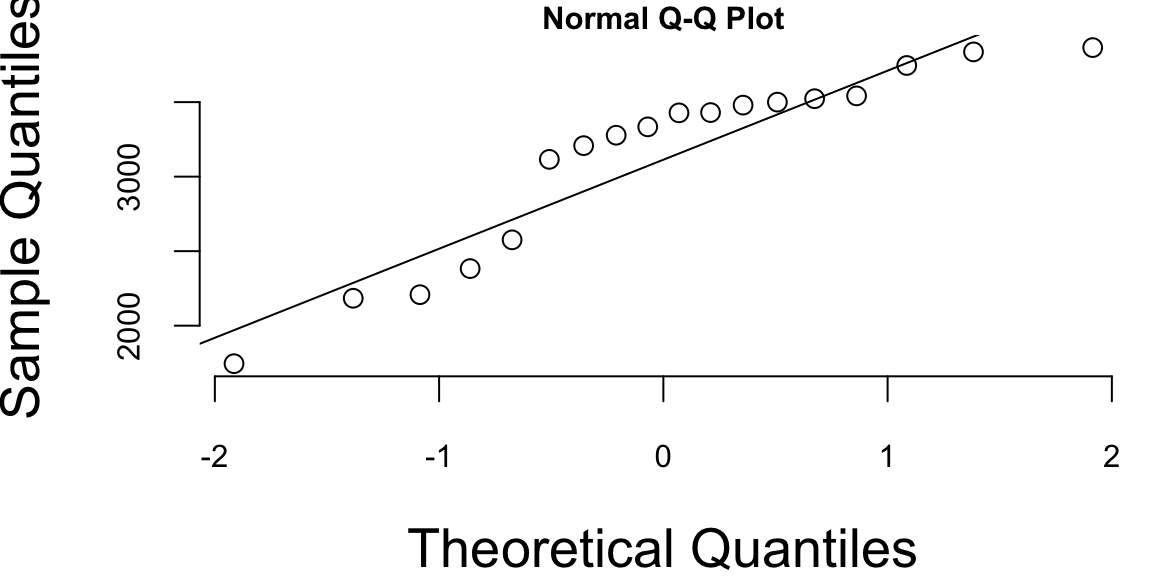

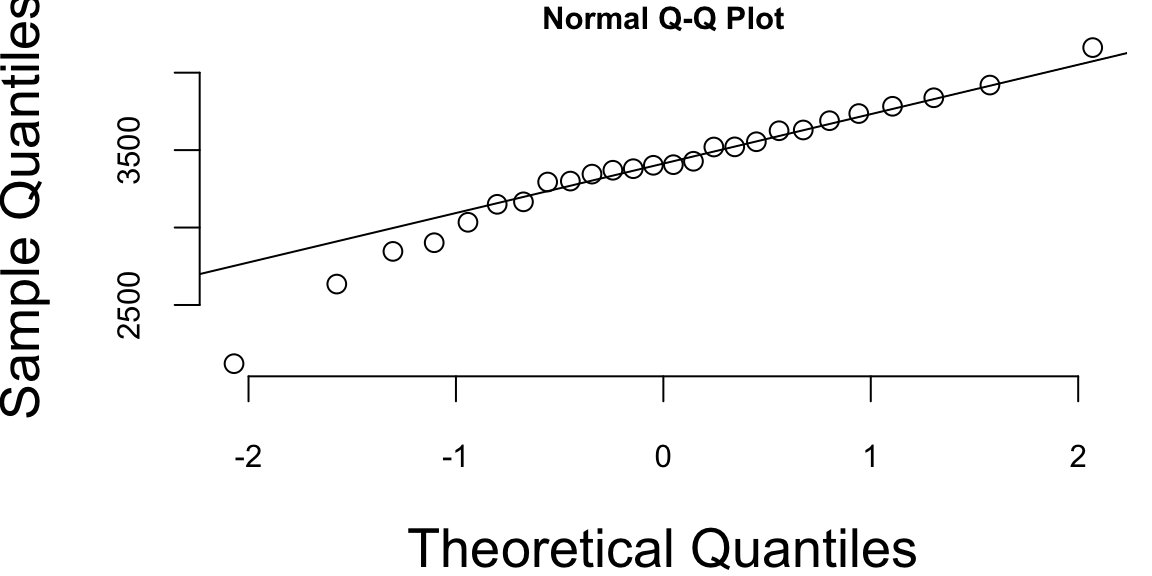

The Q-Q plots look different if we split the data based on the gender

g = babyboom %>% filter(gender=="girl") %>% pull(wt)
b = babyboom %>% filter(gender=="boy")  %>% pull(wt)
qqnorm(g); qqline(g)
qqnorm(b); qqline(b)

Girls

Boys

Histogram of baby weights by gender

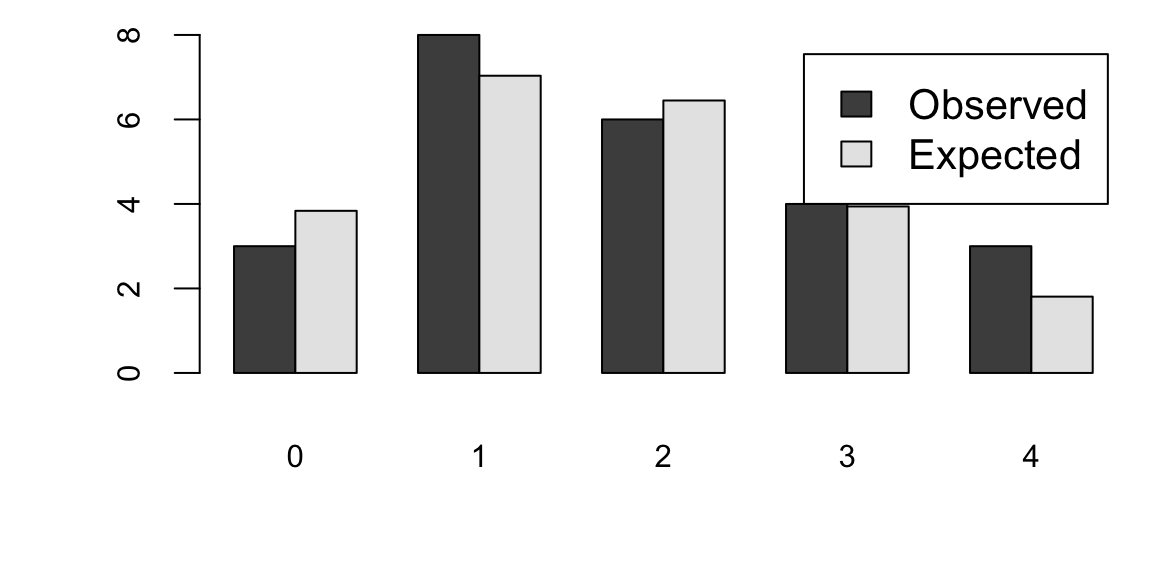

How about the times in hours between births of babies?

hr = ceiling(babyboom$running.time/60)
BirthsByHour = tabulate(hr)
# Number of hours with 0, 1, 2, 3, 4 births
ObservedCounts = table(BirthsByHour)
# Average number of births per hour
BirthRate=sum(BirthsByHour)/24
# Expected counts for Poisson distribution
ExpectedCounts=dpois(0:4,BirthRate)*24
# bind into matrix for plotting
ObsExp <- rbind(ObservedCounts,ExpectedCounts)
barplot(ObsExp,names=0:4, beside=TRUE,legend=c("Observed","Expected"))

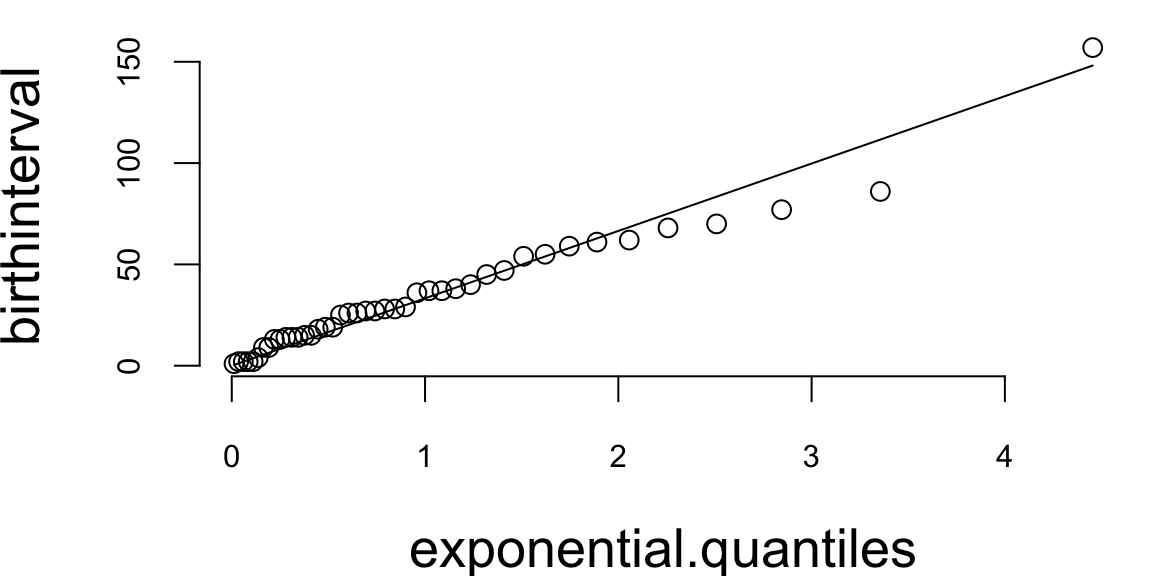

What about the Q-Q plot?

# birth intervals
birthinterval=diff(babyboom$running.time)
 # quantiles of standard exponential distribution (rate=1)
exponential.quantiles = qexp(ppoints(43))
qqplot(exponential.quantiles, birthinterval)
lmb=mean(birthinterval)
lines(exponential.quantiles,exponential.quantiles*lmb) # Overlay a line

Here

  • ppoints function computes the sequence of probability points
  • qexp function computes the quantiles of the exponential distribution
  • diff function computes the difference between consecutive elements of a vector

16.2 Out of Sample Performance

A parametric model that we choose to fit to data is chosen from a family of functions. Then, we use optimization to find the best model from that family. To find the best model we either minimize empirical loss or maximize the likelihood. We also established, that when \(y \sim N(f(x\mid \beta),\sigma^2)\) then mean squared error loss and negative log-likelihood are the same function. \[ \E{y | x} = f(\beta^Tx) \]

For a regression model, an empirical loss measures a distance between fitted values and measurements and the goal is to minimize it. A typical choice of loss function for regression is \[ L (y,\hat y) = \dfrac{1}{n}\sum_{i=1}^n |y_i - f(\beta^Tx_i)|^p \] When \(p=1\) we have MAE (mean absolute error), \(p=2\) we have MSE (mean squared error).

Finding an appropriate family of functions is a major problem and is called model selection problem. For example, the choice of input variables to be included in the model is part of the model selection process. Model selection involves determining which predictors, interactions, or transformations should be included in the model to achieve the best balance between complexity and predictive accuracy. In practice, we often encounter several models for the same dataset that perform nearly identically, making the selection process challenging.

It is important to note that a good model is not necessarily the one that fits the data perfectly. Overfitting can occur when a model is overly complex, capturing noise rather than the underlying pattern. A good model strikes a balance between fitting the data well and maintaining simplicity to ensure generalizability to new, unseen data. For instance, including too many parameters can lead to a perfect fit when the number of observations equals the number of parameters, but such a model is unlikely to perform well on out-of-sample data.

The goal of model selection is not only to achieve a good fit but also to reduce complexity by excluding unnecessary parameters. This process typically involves selecting a model from a relevant class of functions while keeping in mind the trade-offs between bias, variance, and model complexity. Techniques such as cross-validation, information criteria (e.g., AIC, BIC), and regularization methods are commonly used to guide the model selection process.

The model selection task is sometimes one of the most consuming parts of the data analysis. Unfortunately, there is no single rule to find the best model. One way to think about the model choice problem as yet another optimization problem, with the goal to find best family of functions that describe the data. With a small number of predictors we can do brute force (check all possible models). For example, with \(p\) predictors there are \(2^p\) possible models with no interactions. Thus, the number of potential family functions is huge even for modest values of \(p\). One cannot consider all transformations and interactions.

Our goal is to build a model that predicts well for out-of-sample data, e.g. the data that was not used for training. Eventually, we are interested in using our models for prediction and thus, the out of sample performance is the most important metric and should be used to choose the final model. In-sample performance is of little interest when predictive model need to be chosen, as one of the winners of Netflix prize put it, “It’s like predicting how much someone will like a movie, having them watch it and tell you how much they really liked it”. The out-of-sample performance is the final judge of the quality of our model. The goal is to use data to find a pattern that we can exploit. The pattern will be “statistical” in its nature. To uncover the pattern we start with a training dataset, denoted by \[ D = (y_i,x_i)_{i=1}^n \] and to test the validity of our mode we use out-of-sample testing dataset \[ D^* = (y_j^*, x_j^*)_{j=1}^m, \] where \(x_i\) is a set of \(p\) predictors ans \(y_i\) is response variable.

A good predictor will “generalize” well and provide low MSE out-of-sample. These are a number of methods/objective functions that we will use to find, \(\hat f\). In a parameter-based style we will find a black box. There are a number of ways to build our black box model. Our goal is to find the map \(f\) that approximates the process that generated the data. For example data could be representing some physical observations and our goal is recover the “laws of nature" that led to those observations. One of the pitfalls is to find a map \(f\) that does not generalize. Generalization means that our model actually did learn the”laws of nature" and not just identified patterns presented in training. The lack of generalization of the model is called over-fitting. It can be demonstrated in one dimension by remembering the fact from calculus that any set of \(n\) points can be approximated by a polynomial of degree \(n\), e.g we can alway draw a line that connects two points. Thus, in one dimension we can always find a function with zero empirical risk. However, such a function is unlikely to generalize to the observations that were not in our training data. In other words, the empirical risk measure for \(D^*\) is likely to be very high. Let us illustrate that in-sample fit can be deceiving.

Example 16.2 (Hard Function) Say we want to approximate the following function \[ f(x) = \dfrac{1}{1+25x^2}. \] This function is simply a ratio of two polynomial functions and we will try to build a liner model to reconstruct this function

x = seq(-2,2,by=0.01)
y = 1/(1+25*x^2)
# Approximate with polynomial of degree 1 and 2
m1 = lm(y~x)
m2 = lm(y~poly(x,2))
# Approximate with polynomial of degree 20 and 5
m20 = lm(y~poly(x,20))
m5 = lm(y~poly(x,5))
x = seq(-3,3,by=0.01)
y = 1/(1+25*x^2)
plot(x,y,type='l',col='black',lwd=2)
lines(x,predict(m1,list(x=x)),lwd=2, col=1)
lines(x,predict(m2,poly(x,2)),lwd=2, col=2)
lines(x,predict(m5,poly(x,5)),lwd=2, col=3)
lines(x,predict(m20,poly(x,20)),lwd=2, col=4)
legend("topright", legend=c("f(x)","m1","m2","m5","m20"), col=c("black",1:4), lty=1, cex=0.8, bty='n')

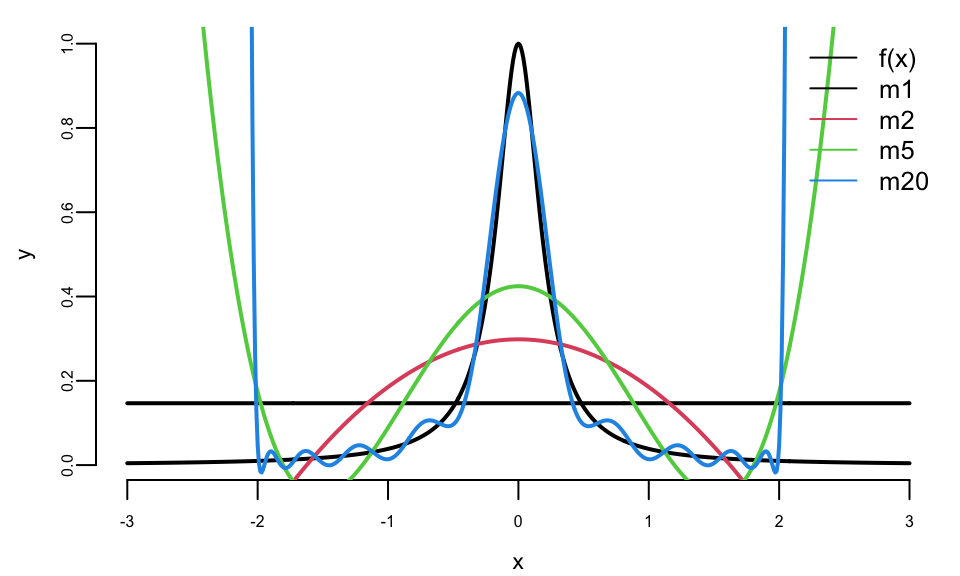

Figure 16.2: Runge-Kutta function

Figure 16.2 shows the function itself (black line) on the interval \([-3,3]\). We used observations of \(x\) from the interval \([-2,2]\) to train the data (solid line) and from \([-3,-2) \cup (2,3]\) (dotted line) to test the model and measure the out-of-sample performance. We tried four different linear functions to capture the relations. We see that linear model \(\hat y = \beta_0 + \beta_1 x\) is not a good model. However, as we increas the degree of the polynomial to 20, the resulting model \(\hat y = \beta_0 + \beta_1x + \beta_2 x^2 +\ldots+\beta_{20}x^{20}\) does fit the training data set quite well, but does very poor job on the test data set. Thus, while in-sample performance is good, the out-of sample performance is unsatisfactory. We should not use the degree 20 polynomial function as a predictive model. In practice in-sample out-of-simple loss or classification rates provide us with a metric for providing horse race between different predictors. It is worth mentioning here there should be a penalty for overly complex rules which fits extremely well in sample but perform poorly on out-of-sample data. As Einstein famous said “model should be simple, but not simpler.”

To a Bayesian, the solution to these decision problems are rather obvious: compute posterior distributions, and then make decisions by maximizing expected utility, where the posterior distribution is used to calculate the expectations. Classical solutions to these problems are different, and use repeated sampling ideas, whereby the performance of a decision rule is judged on its performance if the same decision problem were repeated infinitely. Thus, the decisions are made based on their population properties. One of the main uses of statistical decision theory is to compare different estimators or hypothesis testing procedures. This theory generates many important findings, most notably that many of the common classical estimators are “bad”,in some sense, and that Bayesian estimators are always “good”.

These results have major implications for empirical work and practical applications, as they provide a guide for forecasting.

16.3 Bias-Variance Trade-off

Type II MLE: Marginal MLE (MMLE)

One approach to find “plug-in” estimates of hyper-parameters (a.k.a. amount of regularisation) is to use the marginal likelihood defined by

\[ m(y | \lambda) = \int p(y | \theta) p(\theta | \lambda) d\theta. \]

We then select

\[ \hat{\lambda} = \arg\max_\lambda \; \log m(y | \lambda) \]

Essentially, we have a new objective function for finding the hyper-parameters (tuning parameters).

We can add a further regularisation penalty \(-\log p(\lambda)\) too.

As J.W.Tukey stated at the 1972 American Statistical Association meeting:

“A feeling that any gains possible from a complicated procedurelike Stein’s could not be worththe extratroubl”

16.4 Full Bayes

Should also place a prior on hyper-parameters \(p(\lambda)\). The optimal Bayes estimator under quadratic loss is

\[ \hat{\theta}(y) = E(\theta | y) = E_{\lambda | y} \left( E(\theta | \lambda, y) \right). \]

where \(E_{\lambda | y}\) is taken with respect to the marginal posterior

\[ p(\lambda | y) = \frac{m(y | \lambda) p(\lambda)}{m(y)} \]

The choice of \(p(\lambda)\) is an issue. Jeffreys, Polson and Scott propose the use of half-Cauchy priors \(C^+(0,1)\)-priors.

For any predictive model we seek to achieve best possible results, i.e. smallest MSE or misclassification rate. However, a model performance can be different as data used in one training/validation split may produce results dissimilar to another random split. In addition, a model that performed well on the test set may not produce good results given additional data. Sometimes we observe a situation, when a small change in the data leads to large change in the final estimated model, e.g. parameters of the model. These results exemplify the bias/variance tradeoff, where increasing model bias produces large variance in the final results. Similarly, low bias results in low variance, but can also produce an oversimplification of the final model. While Bias/variance concept is depicted below.

Figure 16.3: Bias-variance trade-off

Example 16.3 (Bias-variance) We demonstrate bias-variance concept using Boston housing example. We fit a model \(\mathrm{medv} = f(\mathrm{lstat})\). We use polynomial functions to approximate this relation. We fitted twelve polynomial functions with degree \(1,\ldots,12\) ten time. Each time we randomly selected 20% of sample for testing and the rest for training. We estimated in-of-sample performance (bias) and out-of-sample performance by calculating MSE on training and testing sets correspondingly. For each polynomial \(f\) we averaged MSE from each of the ten models.

Figure 16.4 (a) shows bias and variance for our twelve different models. As expected, bias increases while variance increases as model complexity grows. On the other hand out-of-sample MSE is a U-shaped curve. The optimal model is the one that has smallest out-of-sample MSE. In our case it is polynomial of degree 5!

(a) Metrics for twelve polynomial functions fitted into Boston housing data set. As model complexity (degree of the polynomial function) increases, model variance increase and bias decreases. Out-of-sample MSE is smallest for 5th degree polynomial function, which is the optimal model in terms of bias-variance trade-off.
(b) Optimal complexity model, which is 5th degree polynomial used to predict observations from testing data set. Model predictions (red line) are compared to actual observed values of medv variable (dots)
Figure 16.4: Metrics for 12 models

Let’s take another, a more formal, look at bias-variance trade-off for a linear regression problem. We are interested in the decomposition of the error \(\E{(y-\hat y)^2}\) as a function of bias \(\E{y-\hat y}\) and variance \(\Var{\hat y}\).

Here \(\hat y = \hat f_{\beta}(x)\) prediction from the model, and \(y = f(x) + \epsilon\) is the true value, which is measured with noise \(\Var{\epsilon} = \sigma^2\), \(f(x)\) is the true unknown function. The expectation above measures squared error of our model on a random sample \(x\). \[ \begin{aligned} \E{(y - \hat{y})^2} & = \E{y^2 + \hat{y}^2 - 2 y\hat{y}} \\ & = \E{y^2} + \E{\hat{y}^2} - \E{2y\hat{y}} \\ & = \Var{y} + \E{y}^2 + \Var{\hat{y}} + \E{\hat{y}}^2 - 2f\E{\hat{y}} \\ & = \Var{y} + \Var{\hat{y}} + (f^2 - 2f\E{\hat{y}} + \E{\hat{y}}^2) \\ & = \Var{y} + \Var{\hat{y}} + (f - \E{\hat{y}})^2 \\ & = \sigma^2 + \Var{\hat{y}} + \mathrm{Bias}(\hat{y})^2\end{aligned} \] Here we used the following identity: \(\Var{X} = \E{X^2} - \E{X}^2\) and the fact that \(f\) is deterministic and \(\E{\epsilon} = 0\), thus \(\E{y} = \E{f(x)+\epsilon} = f + \E{\epsilon} = f\).

16.5 Cross-Validation

If the data set at-hand is small and we cannot dedicate large enough sample size for testing, simply measuring error on test data set can lead to wrong conclusions. When size of the testing set \(D^*\) is small, the estimated out-of-sample performance is of high variance, depending on precisely which observations are included in the test set. On the other hand, when training set \(D^*\) is a large fraction of the entire sample available, estimated out-of-sample performance will be underestimated. Why?

A trivial solution is to perform the training/testing split randomly several times and then use average out-of-sample errors. This procedure has two parameters, the fraction of samples to be selected for testing \(p\) and number of estimates to be performed \(K\). The resulting algorithm is as follows

fsz = as.integer(p*n)
error = rep(0,K)
for (k in 1:K)
{
    test_ind = sample(1:n,size = fsz)
    training = d[-test_ind,]
    testing  = d[test_ind,]
    m = lm(y~x, data=training)
    yhat = predict(m,newdata = testing)
    error[k] = mean((yhat-testing$y)^2)
}
res = mean(error)

Figure 16.5 shows the process of splitting data set randomly five times.

Cross validation modifies the random splitting approach uses more “disciplined” way to split data set for training and testing. Instead of randomly selecting training data points, CV chooses consecutive observations and thus, each data point is used once for testing. As the random approach, CV helps addressing the high variance issue of out-of-sample performance estimation when data set available is small. Figure 16.6 shows the process of splitting data set five times using cross-validation approach.

Figure 16.5: Bootstrap
Figure 16.6: Cross-validation

Training set (red) and testing set (green)

Example 16.4 (Simulated) We use simulated data set to demonstrate difference between estimated out-of-sample performance using random 20/80 split, 5-fold cross-validation and random split. We used \(x=-2,-1.99,-1.98,\ldots,2\) and \(y = 2+3x + \epsilon, ~ \epsilon \sim N(0,\sqrt{3})\). We simulated 35 datasets of size 100. For each of the simulated data sets, we fitted a linear model and estimated out-of-sample performance using three different approaches. Figure 16.7 compares empirical distribution of errors estimated from 35 samples.

Figure 16.7: Empirical comparison of simple split, cross-validation, and bootstrap approaches to estimate out-of sample performance.

As we can see the estimated out-of-sample performance by a training set approach is of high variance. While, both cross-validation and bootstrap approaches lead to better estimates, they require model to be fitted 5 times, which can be computationally costly for a complex model. On the other hand, estimate from cross-validation is of lower variance and less bias compared to the bootstrap estimate. Thus, we should prefer cross-validation.

16.6 Small Sample Size

When sample size is small and it is not feasible to divide your data into training and validation data sets, an information criterion could be used to assess a model. We can think of information criterion as a metric that “approximates” out-os-sample performance of the model. Akaike’s Information Criterion (AIC) takes the form \[ \mathrm{AIC} = log(\sigma_k^2) + \dfrac{n+2k}{n} \] \[ \hat{\sigma}_k^2 = \dfrac{SSE_k}{n} \] Here \(k\) = number of coefficients in regression model, \(SSE_k\) = residual sum of square, \(\hat{\sigma}_k^2\) = MLE estimator for variance. We do not need to proceed sequentially, each model individually evaluated

AIC is derived using the Kullback-Leibler information number. It is a ruler to measure the similarity between the statistical model and the true distribution. \[ I(g ; f) = E_g\left(\log \left\{\dfrac{g(y)}{f(y)}\right\}\right) = \int_{-\infty}^{\infty}\log \left\{\dfrac{g(y)}{f(y)}\right\}g(y)dy. \] Here - \(I(g ; f) > 0\) - \(I(g ; f) = 0 \iff g(u) = f(y)\) - \(f \rightarrow g\) as \(I(g ; f) \rightarrow 0\)

To estimate \(I(g ; f)\), we write \[ I(g ; f) = E_g\left(\log \left\{\dfrac{g(y)}{f(y)}\right\}\right) = E_g (\log g(y)) - E_g(\log f(y)) \] Only the second term is important in evaluating the statistical model \(f(y)\). Thus we need to estimate \(E_g(\log f(y))\). Given sample \(z_1,...,z_n\), and estimated parameters \(\hat{\theta}\) a naive estimate is \[ \hat{E}_g(\log f(y)) = \dfrac{1}{n} \sum_{i=1}^n \log f(z_i) = \dfrac{\ell(\hat{\theta})}{n} \] where \(\ell(\hat{\theta})\) is the log-likelihood function for model under test.

  • this estimate is very biased
  • data used used twice: to get the MLE and second to estimate the integral
  • it will favor those model that overfit

Akaike showed that the bias is approximately \(k/n\) where \(k\) is the number of parameters \(\theta\). Therefore we use \[ \hat{E}_g(\log f(y)) = \dfrac{\ell(\hat{\theta})}{n} - \dfrac{k}{n} \] Which leads to AIC \[ AIC = 2n \hat{E}_g(\log f(y)) = 2 \ell(\hat{\theta}) - 2k \]

Akaike’s Information Criterion (AIC) \[ \mathrm{AIC} = \log(\sigma_k^2) + \dfrac{n+2k}{n} \] Controls for balance between model complexity (\(k\)) and minimizing variance. The model selection process involve trying different \(k\), chose model with smallest AIC.

A slightly modified version designed for small samples is the bias corrected AIC (AICc). \[ \mathrm{AICc} = \log(\hat{\sigma}_k^2) + \dfrac{n+k}{n-k-2} \] This criterion should be used for regression models with small samples

Yet, another variation designed for larger datasets is the Bayesian Information Criterion (BIC). \[ \mathrm{BIC} = \log(\hat{\sigma}_k^2) + \dfrac{k \log(n)}{n} \] Is is the same as AIC but harsher penalty, this chooses simpler models. It works better for large samples when compared to AICc. The motivation fo BIC is from the posterior distribution over model space. Bayes rule lets you calculate the joint probability of parameter and models as \[ p(\theta,M\mid D) = \dfrac{p(D\mid \theta,M(p(M,\theta)}{p(D)},~~ p(M\mid D) = \int p(\theta,M\mid D)d\theta \approx n^{p/2}p(D\mid \hat \theta M)p(M). \]

Consider a problem of predicting mortality rates given pollution and temperature measurements. Let’s plot the data.

Figure 16.8: Time Series Plot
Figure 16.9: Scatter Plot

Regression Model 1, which just uses the trend: \(M_t = \beta_1 + \beta_2 t + w_t\). We fit by calling lm(formula = cmort ~ trend) to get the following coefficients

                Estimate    Std. Error t value
    (Intercept) 3297.6062   276.3132   11.93
    trend         -1.6249     0.1399  -11.61

Regression Model 2 regresses to time (trend) and temperature: \(M_t = \beta_1 + \beta_2 t + \beta_t(T_t - T)+ w_t\). The R call is lm(formula = cmort ~ trend + temp)

                Estimate    Std. Error t value
    (Intercept) 3125.75988  245.48233   12.73
    trend         -1.53785    0.12430  -12.37
    temp          -0.45792    0.03893  -11.76

Regression Model 3, uses trend, temperature and mortality: \(M_t = \beta_1 + \beta_2 t + \beta_3(T_t - T)+ \beta_4(T_t - T)^2 + w_t\). The R call is lm(formula = cmort ~ trend + temp + I(temp^2)

                Estimate    Std. Error t value
    (Intercept)  3.038e+03  2.322e+02  13.083
    trend       -1.494e+00  1.176e-01 -12.710
    temp        -4.808e-01  3.689e-02 -13.031
    temp2        2.583e-02  3.287e-03   7.858

Regression Model 4 adds temperature squared: \[M_t = \beta_1 + \beta_2 t + \beta_3(T_t - T)+ \beta_4(T_t - T)^2 + \beta_5 P_t+ w_t.\]

The R call is lm(formula = cmort ~ trend + temp + I(temp^2) + part)

                Estimate    Std. Error t value
    (Intercept)  2.831e+03  1.996e+02   14.19
    trend       -1.396e+00  1.010e-01  -13.82
    temp        -4.725e-01  3.162e-02  -14.94
    temp2        2.259e-02  2.827e-03    7.99
    part         2.554e-01  1.886e-02   13.54

To choose the model, we look at the information criterion

Model \(k\) SSE df MSE \(R^2\) AIC BIC
1 2 40,020 506 79.0 .21 5.38 5.40
2 3 31,413 505 62.2 .38 5.14 5.17
3 4 27,985 504 55.5 .45 5.03 5.07
4 5 20,508 503 40.8 .60 4.72 4.77

\(R^2\) always decreases with number of covariates (that is what MLE does). Thus, cannot be used as a selection criteria. \(R^2\) for out-of-sample data is useful!

The message to take home on model selection

  • \(R^2\) is NOT a good metric for model selection
  • Value of likelihood function is NOT a god metric
  • are intuitive and work very well in practice (you should use those)
  • AIC is good for big \(n/df\), so it overfits in high dimensions
  • Should prefer AICc over AIC
  • BIC underfits for large \(n\)
  • Cross-validation is important, we will go over it later

16.7 Regularization

Regularization is a technique to incorporate some prior knowledge about parameters of the model into the estimation process. Consider an example when regularization allows us to solve a hard problem of filtering noisy traffic data.

Example 16.5 (Traffic) Consider traffic flow speed measured by an in-ground sensor installed on interstate I-55 near Chicago. Speed measurements are noisy and prone to have outliers. Figure 16.10 shows speed measured data, averaged over five minute intervals on one of the weekdays.

Figure 16.10: Speed profile over 24 hour period on I-55, on October 22, 2013

Speed measurements are noisy and prone to have outliers. There are two sources of noise. The first is the measurement noise, caused by inhalant nature of the sensor’s hardware. The second source is due to sampling error, vehicles observed on a specific lane where senor installed might not represent well traffic in other lanes.

Trend filtering, which is a variation of a well-know Hodrick-Prescott filter. In this case, the trend estimate is the minimizer of the weighted sum objective function \[ (1/2) \sum_{t=1}^{n}(y_t - x_t)^2 + \lambda \sum_{t=1}^{n-1}|x_{t-1} - 2x_t + x_{t+1}|, \]

Trend filter for different penalty

Trend filtering with optimal penalty

Trend Filtering for Traffic Speed Data

16.8 Ridge Regression

Gauss invented the concept of least squares and developed algorithms to solve the the optimization problem \[ \underset{\beta}{\mathrm{minimize}}\quad ||y- X\beta||_2^2 \] where \(\beta = (\beta_1 , \ldots , \beta_p )\), we can use linear algebra algorithms, the solution given by \[ \hat{\beta} = ( X^T X )^{-1} X^T y \] This can be numerically unstable when \(X^T X\) is ill-conditioned, and happens when \(p\) is large. Ridge regression addresses this problem by adding an extra term to the \(X^TX\) matrix \[ \hat{\beta}_{\text{ridge}} = ( X^T X + \lambda I )^{-1} X^T y. \] The corresponding optimization problem is \[ \underset{\beta}{\mathrm{minimize}}\quad ||y- X\beta||_2^2 + \lambda||\beta||_2^2. \] We can think of the constrain is of a budget on the size of \(\beta\). Ridge reguralization was first proposed in solving inverse problems to “discover” physical laws from observations and the norm of the \(\beta\) vector would usually represent amount of energy required, and the 2-norm penalty term allows to find find a balance between data fidelity and solution simplicity. The regularization term acts to constrain the solution space, preventing it from reaching high-energy (overly complex) states, most of the times nature chooses the path of least resistance, thus minimal energy solutions are practical.

The we choose \(\lambda\) over a regularisation path. The penalty in ridge regression forces coefficients \(\beta\) to be close to 0. Penalty is large for large values and very small for small ones. Tuning parameter \(\lambda\) controls trade-off between how well model fits the data and how small \(\beta\)s are. Different values of \(\lambda\) will lead to different models. We select \(\lambda\) using cross validation.

16.9 Kernel view

Another interesting view stems from what is called the push-through matrix identity: \[ (aI + UV)^{-1}U = U(aI + VU)^{-1} \] for \(a\), \(U\), \(V\) such that the products are well-defined and the inverses exist. We can obtain this from \(U(aI + VU) = (aI + UV)U\), followed by multiplication by \((aI + UV)^{-1}\) on the left and the right. Applying the identity above to the ridge regression solution with \(a = \lambda\), \(U = X^T\), and \(V = X\), we obtain an alternative form for the ridge solution: \[ \hat{\beta} = X^T (XX^T + \lambda I)^{-1} Y. \] This is often referred to as the kernel form of the ridge estimator. From this, we can see that the ridge fit can be expressed as \[ X\hat{\beta} = XX^T (XX^T + \lambda I)^{-1} Y. \] What does this remind you of? This is precisely \(K(K + \lambda I)^{-1}Y\) where \(K = XX^T\), which, recall, is the fit from RKHS regression with a linear kernel \(k(x, z) = x^T z\). Therefore, we can think of RKHS regression as generalizing ridge regression by replacing the standard linear inner product with a general kernel. (Indeed, RKHS regression is often called kernel ridge regression.) \[ (aI + UV)^{-1}U = U(aI + VU)^{-1} \] for \(a\), \(U\), \(V\) such that the products are well-defined and the inverses exist. We can obtain this from \(U(aI + VU) = (aI + UV)U\), followed by multiplication by \((aI + UV)^{-1}\) on the left and the right. Applying the identity above to the ridge regression solution with \(a = \lambda\), \(U = X^T\), and \(V = X\), we obtain an alternative form for the ridge solution: \[ \hat{\beta} = X^T (XX^T + \lambda I)^{-1} Y. \] This is often referred to as the kernel form of the ridge estimator. From this, we can see that the ridge fit can be expressed as \[ X\hat{\beta} = XX^T (XX^T + \lambda I)^{-1} Y. \] What does this remind you of? This is precisely \(K(K + \lambda I)^{-1}Y\) where \(K = XX^T\), which, recall, is the fit from RKHS regression with a linear kernel \(k(x, z) = x^T z\). Therefore, we can think of RKHS regression as generalizing ridge regression by replacing the standard linear inner product with a general kernel. (Indeed, RKHS regression is often called kernel ridge regression.)

Example 16.6 (Shrinkage) Consider a simulated data with \(n=50\), \(p=30\), and \(\sigma^2=1\). The true model is linear with \(10\) large coefficients between \(0.5\) and \(1\).

Our approximators \(\hat f_{\beta}\) is a linear regression. We can empirically calculate the bias by calculating the empirical squared loss \(1/n||y -\hat y||_2^2\) and variance can be empirically calculated as \(1/n\sum (\bar{\hat{y}} - \hat y_i)\)

Bias squared \(\mathrm{Bias}(\hat{y})^2=0.006\) and variance \(\Var{\hat{y}} =0.627\). Thus, the prediction error = \(1 + 0.006 + 0.627 = 1.633\)

We’ll do better by shrinking the coefficients to reduce the variance. Let’s estimate, how big a gain will we get with Ridge?

True model coefficients

Now we see the accuracy of the model as a function of \(\lambda\)

Prediction error as a function of \(\lambda\)

Ridge Regression At best: Bias squared \(=0.077\) and variance \(=0.402\).

Prediction error = \(1 + 0.077 + 0.403 = 1.48\)

Ridge

The additional term \(\lambda||\beta||_2^2\) in the optimization problem is called the regularization term. There are several ways to regularize an optimization problem. All of those techniques were developed in the middle of last century and were applied to solve problems of fitting physics models into observed data, those frequently arise in physics and engineering applications. Here are a few examples of such regularization techniques.

Ivanov regularization \[ \underset{x \in \mathbb{R^n}}{\mathrm{minimize}}\quad ||y - X\beta||_2^2~~~~ \mbox{s.t.}~~||\beta||_l \le k \]

Morozov regularization \[ \underset{x \in \mathbb{R^n}}{\mathrm{minimize}}\quad ||\beta||_l~~~~ \mbox{s.t.}~~ ||y - X\beta||_2^2 \le \tau \] Here \(\tau\) reflects the so called noise level, i.e. an estimate of the error which is made during the measurement of \(b\).

Tikhonov regularization \[ \underset{\beta\in \mathbb{R^n}}{\mathrm{minimize}}\quad ||y - X\beta||_2^2 + \lambda||\beta||_l \] - Tikhonov regularization with \(l=1\) is lasso - Tikhonov regularization with \(l=2\) is ridge regression - lasso + ridge = elastic net

16.10 \(\ell_1\) Regularization (LASSO)

The Least Absolute Shrinkage and Selection Operator (LASSO) uses \(\ell_1\) norm penalty and in case of linear regression leads to the following optimization problem \[ \underset{\beta}{\mathrm{minimize}}\quad ||y- X\beta||_2^2 + \lambda||\beta||_1 \]

In one dimensional case solves the following optimization problem \[ \underset{\beta}{\mathrm{minimize}}\quad \frac{1}{2} (y-\beta)^2 + \lambda | \beta | \] The solution is given by the soft-thresholding operator defined by \[ \hat{\beta} = \mathrm{soft} (y; \lambda) = ( y - \lambda ~\mathrm{sgn}(y) )_+. \] Here sgn is the sign function and \(( x )_+ = \max (x,0)\). To demonstrate how this solution is derived, we can define a slack variable \(z = | \beta |\) and solve the joint constrained optimisation problem which is differentiable.

Graphically, the soft-thresholding operator is

Soft-threshold operator.

LASSO has a nice feature that it forces some of the \(\hat{\beta}\)’s to zero. It is an automatic variable selection! Finding optimal solution is computationally fast, it is a convex optimisation problem, though, it is non-smooth. As in ridge regression, we still have to pick \(\lambda\) via cross-validation. Visually the process can be represented using regularization path graph, as in the following example Example: We model prostate cancer using LASSO

MSE.

Path

MSE and Regularization path for Prostate Cancer data using LASSO

Now with ridge regression

MSE

Path

MSE and Regularization path for Prostate Cancer data using Ridge

Example 16.7 (Horse race prediction using logistic regression) We use the run.csv data from Kaggle (https://www.kaggle.com/gdaley/hkracing). Thhis dataset contains the condition of horse races in Hong Kong, including race course, distance, track condition and dividends paid. We want to use individual variables to predict the chance of winning of a horse. For the simplicity of computation, we only consider horses with id \(\leq 500\), and train the model with \(\ell_1\)-regularized logistic regression.

And we include lengths_behind, horse_age, horse_country, horse_type, horse_rating, horse_gear, declared_weight, actual_weight, draw, win_odds, place_odds as predicting variables in our model.

Since most of the variables, such as country, gear, type, are categorical, after spanning them into binary indictors, we have more than 800 columns in the design matrix.

We try two logistic regression model. The first one includes win_odds given by the gambling company. The second one does not include the win_odds and we use win_odds to test the power of our model. We tune both models with a 10-fold cross-validation to find the best penalty parameter \(\lambda\).

In this model, we fit the logistic regression with full dataset. The best \(\lambda\) we find is \(5.699782e-06\).

Number of variables vs lambda

Coefficient Ranking

Logistic regression for full data

In this model, we randomly partition the dataset into training(70%) and testing(30%) parts. We fit the logistic regression with training dataset. The best \(\lambda\) we find is \(4.792637e-06\).

Number of variables vs lambda

Coefficient Ranking

Logistic regression for test data

The out-of-sample mean squared error for win_odds is 0.0668.

Elastic Net combines Ridge and Lasso and chooses coefficients \(\beta_1,\ldots,\beta_p\) for the input variables by minimizing the sum-of-squared residuals plus a penalty of the form \[ \lambda||\beta||_1 + \alpha||\beta||_2^2. \]

16.11 Bayesian Model Selection

When analyzing data, we deal with three types of quantities

  1. \(X\) = observed variables
  2. \(Y\) = hidden variable
  3. \(\theta\) = parameters of the model that describes the relation between \(X\) and \(Y\).

A probabilistic models of interest are the joint probability distribution \(p(D,\theta)\) (called a generative model) and \(P(Y,\theta \mid X)\) (discriminative model). Discriminative models are easier to build and are more frequently used in practice. Generative model requires modeling a distribution over the set of observed variables, which makes our model more complicated. Text analysis provides an illustrative example. The task of identifying a topic of an article can be solved using discriminative distribution. The problem of generating a new article requires generative model.

While performing data analysis using learning algorithms, we perform two tasks, namely training and inference which are summarized in the table below

Step Given Hidden What to find
Training \(D = (X,Y) = \{x_i,y_i\}_{i=1}^n\) \(\theta\) \(p(\theta \mid D)\)
Prediction \(x_{\text{new}}\) \(y_{\text{new}}\) \(p(y_{\text{new}} \mid x_{\text{new}}, D)\)

The training can be performed via the Bayes rule \[ p(\theta \mid D) = \dfrac{p(Y \mid \theta,X)p(\theta)}{\int p(Y \mid \theta,X)p(\theta)d\theta}. \] Now to perform the second step (prediction), we calculate \[ p(y_{\text{new}} \mid x_{\text{new}}, D) = \int p(y_{\text{new}} \mid x_{\text{new}},\theta)p(\theta \mid D)d\theta \] Thus, full Bayesian inference requires calculating two integrals, which might be difficult. We mentioned earlier that MAP allows us to avoid those calculations by approximating the posterior with \[ p(\theta \mid D) \approx \delta(\theta_{\text{MAP}}),~~\theta_{\text{MAP}} \in \argmax_{\theta}p(\theta \mid D) \] To calculate \(\theta_{\text{MAP}}\), we do not need to know the normalizing constant for calculating posterior, since the solution of optimization problem does not depend on this constant. Further, the second integral for inference becomes degenerate and get approximated by \[ p(y_{\text{new}} \mid x_{\text{new}}, D) = \int p(y_{\text{new}} \mid x_{\text{new}},\theta)p(\theta \mid D)d\theta \approx p(y_{\text{new}} \mid x_{\text{new}},\theta_{\text{MAP}}). \]

Now we consider a case, when we have several candidate density functions for performing the prediction \[ p_1(Y,\theta \mid X), ~~p_2(Y,\theta \mid X),\ldots \] How do we choose the better model? We can choose the model with highest evidence value (due to David MacKay) \[ j = \argmax_j p_j(Y \mid X) = \argmax_j \int p_j(Y \mid X,\theta)p(\theta)d\theta. \] Note, formally instead of \(p(\theta)\) we need to write \(p(\theta \mid X)\), however since \(\theta\) does not depend on \(X\) we omit it.

Model Selection

Can you think of how the prior \(p(\theta)\), posterior \(p(\theta \mid D)\) and the evidence \(p(Y \mid X)\) distributions will look like? Which model is the best? Which model will have the highest \(\theta_{\text{MAP}}\)?

Example 16.8 (Racial discrimination) Say we want to analyze racial discrimination by the US courts. We have three variables:

  • Murderer: \(m \in {0,1}\) (black/white)
  • Victim: \(v \in \{0,1\}\) (black/white)
  • Verdict: \(d \in \{0,1\}\) (prison/death penalty)

Say we have the data

m v d n
0 0 0 132
0 0 1 19
0 1 0 9
0 1 1 0
1 0 0 52
1 0 1 11
1 1 0 97
1 1 1 6

We would like to establish a causal relations between the race and verdict variables. For this, we consider several models

  1. \(p(d \mid m,v) = p(d) = \theta\)

  2. \(p(d \mid m,v) = p(d \mid v)\); \(p(d \mid v=0) = \alpha, ~p(d \mid v=1)=\beta\)

  3. \(p(d \mid v,m) = p(d \mid m)\); \(p(d \mid m=1) = \gamma,~p(d \mid m=1) = \delta\)

  4. \(p(d|v,m)\) cannot be reduced, and

    \(p(d=1 \mid m,v)\) \(m=0\) \(m=1\)
    \(v=0\) \(\tau\) \(\chi\)
    \(v=1\) \(\nu\) \(\zeta\)

We calculate which model describes data the best, we calculate the evidences. We need to describe the discriminative model \[ p(Y ,\theta \mid X) = p(Y \mid X,\theta)p(\theta \mid X) \] Here \(X\) is the number of cases, and \(Y\) is the number of death penalties. We use uninformative prior \(\theta \sim U[0,1]\). To specify the likelihood, we use Binomial distribution \[ Y \mid X,\theta \sim B(X,\theta),~~B(Y \mid X,\theta) = C_Y^Xp^Y(1-\theta)^{X-Y} \] We assume \(p(\theta)\sim Uniform\). Now lets calculate the evidence \[ p(Y, \theta \mid X) = \int p(Y \mid X,\theta)p(\theta)d\theta \] for each of the four models

  1. \(p(Y \mid X) = \int B(19 \mid 151,\theta)B(0 \mid 9,\theta)B(11 \mid 63,\theta)B(6 \mid 103,\theta)d\theta\) \(\propto \int_0^{1} \theta^{36}(1-\theta)^{290}d\theta = B(37,291) = 2.8\times 10^{-51}\)
  2. \(p(Y \mid X) = \int\int B(19 \mid 151,\alpha)B(0 \mid 9,\beta)B(11 \mid 63,\alpha)B(6 \mid 103,\beta)d\alpha d\beta \propto 4.7\times 10^{-51}\)
  3. \(p(d \mid v,m) = p(d \mid m)=\int\int B(19 \mid 151,\gamma)B(0 \mid 9,\gamma)B(11 \mid 63,\delta)B(6 \mid 103,\delta)d\gamma d\delta \propto 0.27\times10^{-51}\)
  4. \(p(d \mid v,m) = \int\int\int\int B(19 \mid 151,\tau)B(0 \mid 9,\nu)B(11 \mid 63,\chi)B(6 \mid 103,\zeta)d\tau d\nu d\chi d\zeta \propto 0.18\times10^{-51}\)

The last model is too complex, it can explain any relations in the data and this, has the lowest evidence score! However, if we are to use ML estimates, the fourth model will have the highest likelihood. Bayesian approach allows to avoid over-fitting! You can also see that this data set contains the Simpson’s paradox. Check it! A related problem is Bertrand’s gold box problem.

16.12 Bayesian \(\ell_0\) regularization

Bayesian \(\ell_0\) regularization is an attractive solution for high dimensional variable selection as it directly penalizes the number of predictors. The caveat is the need to search over all possible model combinations, as a full solution requires enumeration over all possible models which is NP-hard. The gold standard for Bayesian variable selection are spike-and-slab priors, or Bernoulli-Gaussian mixtures.

Consider a standard Gaussian linear regression model, where \(X = [X_1, \ldots, X_p] \in \mathbb{R}^{n \times p}\) is a design matrix, \(\beta = (\beta_1, \ldots, \beta_p)^T \in \mathbb{R}^p\) is a \(p\)-dimensional coefficient vector, and \(e\) is an \(n\)-dimensional independent Gaussian noise. After centralizing \(y\) and all columns of \(X\), we ignore the intercept term in the design matrix \(X\) as well as \(\beta\), and we can write

\[ y = X\beta + e, \quad \text{where } e \sim N(0, \sigma_e^2 I_n) \tag{16.1}\]

To specify a prior distribution \(p(\beta)\), we impose a sparsity assumption on \(\beta\), where only a small portion of all \(\beta_i\)’s are non-zero. In other words, \(\|\beta\|_0 = k \ll p\), where \(\|\beta\|_0 := \#\{i : \beta_i \neq 0\}\), the cardinality of the support of \(\beta\), also known as the \(\ell_0\) (pseudo)norm of \(\beta\). A multivariate Gaussian prior (\(l_2\) norm) leads to poor sparsity properties in this situation. (See, for example, Polson and Scott (2011).)

Sparsity-inducing prior distributions for \(\beta\) can be constructed to impose sparsity. The gold standard is a spike-and-slab prior (Jeffreys 1998; Mitchell and Beauchamp 1988; George and and McCulloch 1993). Under these assumptions, each \(\beta_i\) exchangeably follows a mixture prior consisting of \(\delta_0\), a point mass at \(0\), and a Gaussian distribution centered at zero. Hence we write

\[ \beta_i | \theta, \sigma_\beta^2 \sim (1-\theta)\delta_0 + \theta N(0, \sigma_\beta^2) \tag{16.2}\]

Here \(\theta \in (0, 1)\) controls the overall sparsity in \(\beta\) and \(\sigma_\beta^2\) accommodates non-zero signals. This family is termed as the Bernoulli-Gaussian mixture model in the signal processing community.

A useful re-parameterization: the parameters \(\beta\) are given by two independent random variable vectors \(\gamma = (\gamma_1, \ldots, \gamma_p)\) and \(\alpha = (\alpha_1, \ldots, \alpha_p)\) such that \(\beta_i = \gamma_i \alpha_i\), with probabilistic structure

\[ \begin{array}{rcl} \gamma_i|\theta & \sim & \text{Bernoulli}(\theta) \\ \alpha_i | \sigma_\beta^2 &\sim & N(0, \sigma_\beta^2) \end{array} \tag{16.3}\]

Since \(\gamma_i\) and \(\alpha_i\) are independent, the joint prior density becomes

\[ p(\gamma_i, \alpha_i | \theta, \sigma_\beta^2) = \theta^{\gamma_i}(1-\theta)^{1-\gamma_i}\frac{1}{\sqrt{2\pi}\sigma_\beta}\exp\left\{-\frac{\alpha_i^2}{2\sigma_\beta^2}\right\}, \quad 1 \leq i \leq p \]

The indicator \(\gamma_i \in \{0, 1\}\) can be viewed as a dummy variable to indicate whether \(\beta_i\) is included in the model .

Let \(S = \{i: \gamma_i = 1\} \subseteq \{1, \ldots, p\}\) be the “active set” of \(\gamma\), and \(\|\gamma\|_0 = \sum_{i=1}^p \gamma_i\) be its cardinality. The joint prior on the vector \(\{\gamma, \alpha\}\) then factorizes as

\[ \begin{array}{rcl} p(\gamma, \alpha | \theta, \sigma_\beta^2) &=& \prod_{i=1}^p p(\alpha_i, \gamma_i | \theta, \sigma_\beta^2) \\ &=& \theta^{\|\gamma\|_0} (1-\theta)^{p-\|\gamma\|_0} (2\pi\sigma_\beta^2)^{-p/2} \exp\left\{-\frac{1}{2\sigma_\beta^2} \sum_{i=1}^p \alpha_i^2\right\} \end{array} \]

Let \(X_\gamma := [X_i]_{i \in S}\) be the set of “active explanatory variables” and \(\alpha_\gamma := (\alpha_i)_{i \in S}\) be their corresponding coefficients. We can write \(X\beta = X_\gamma \alpha_\gamma\). The likelihood can be expressed in terms of \(\gamma\), \(\alpha\) as

\[ p(y | \gamma, \alpha, \theta, \sigma_e^2) = (2\pi\sigma_e^2)^{-n/2} \exp\left\{ -\frac{1}{2\sigma_e^2} \|y - X_\gamma \alpha_\gamma\|_2^2 \right\} \]

Under this re-parameterization by \(\{\gamma, \alpha\}\), the posterior is given by

\[ \begin{array}{rcl} p(\gamma, \alpha | \theta, \sigma_\beta^2, \sigma_e^2, y) &\propto& p(\gamma, \alpha | \theta, \sigma_\beta^2) p(y | \gamma, \alpha, \theta, \sigma_e^2) \\ &\propto& \exp\left\{ -\frac{1}{2\sigma_e^2} \|y - X_\gamma \alpha_\gamma\|_2^2 - \frac{1}{2\sigma_\beta^2} \|\alpha\|_2^2 - \log\left(\frac{1-\theta}{\theta}\right) \|\gamma\|_0 \right\} \end{array} \]

Our goal then is to find the regularized maximum a posterior (MAP) estimator

\[ \arg\max_{\gamma, \alpha} p(\gamma, \alpha | \theta, \sigma_\beta^2, \sigma_e^2, y) \]

By construction, \(\gamma \in \{0, 1\}^p\) will directly perform variable selection. Spike-and-slab priors, on the other hand, will sample the full posterior and calculate the posterior probability of variable inclusion.

Finding the MAP estimator is equivalent to minimizing over \(\{\gamma, \alpha\}\) the regularized least squares objective function:

\[ \min_{\gamma, \alpha} \|y - X_\gamma \alpha_\gamma\|_2^2 + \frac{\sigma_e^2}{\sigma_\beta^2} \|\alpha\|_2^2 + 2\sigma_e^2 \log\left(\frac{1-\theta}{\theta}\right) \|\gamma\|_0 \tag{16.4}\]

This objective possesses several interesting properties:

  1. The first term is essentially the least squares loss function.
  2. The second term looks like a ridge regression penalty and has connection with the signal-to-noise ratio (SNR) \(\sigma_\beta^2/\sigma_e^2\). Smaller SNR will be more likely to shrink the estimates towards \(0\). If \(\sigma_\beta^2 \gg \sigma_e^2\), the prior uncertainty on the size of non-zero coefficients is much larger than the noise level, that is, the SNR is sufficiently large, this term can be ignored. This is a common assumption in spike-and-slab framework in that people usually want \(\sigma_\beta \to \infty\) or to be “sufficiently large” in order to avoid imposing harsh shrinkage to non-zero signals.
  3. If we further assume that \(\theta < 1/2\), meaning that the coefficients are known to be sparse a priori, then \(\log((1-\theta)/\theta) > 0\), and the third term can be seen as an \(\ell_0\) regularization.

Therefore, our Bayesian objective inference is connected to \(\ell_0\)-regularized least squares, which we summarize in the following proposition.

Proposition 1 (Spike-and-slab MAP & \(\ell_0\) regularization)

For some \(\lambda > 0\), assuming \(\theta < 1/2\), \(\sigma_\beta^2 \gg \sigma_e^2\), the Bayesian MAP estimate defined by (Equation 16.4) is equivalent to the \(\ell_0\) regularized least squares objective, for some \(\lambda > 0\),

\[ \min_{\beta} \frac{1}{2} \|y - X\beta\|_2^2 + \lambda \|\beta\|_0 \tag{16.5}\]

Proof. Proof. First, assuming that

\[ \theta < 1/2, \quad \sigma_\beta^2 \gg \sigma_e^2, \quad \frac{\sigma_e^2}{\sigma_\beta^2} \|\alpha\|_2^2 \to 0 \]

gives us an objective function of the form

\[ \min_{\gamma, \alpha} \frac{1}{2} \|y - X_\gamma \alpha_\gamma\|_2^2 + \lambda \|\gamma\|_0, \quad \lambda := \sigma_e^2 \log\left(\frac{1-\theta}{\theta}\right) > 0 \tag{16.6}\]

Equation 16.6 can be seen as a variable selection version of Equation 16.5. The interesting fact is that Equation 16.5 and Equation 16.6 are equivalent. To show this, we need only to check that the optimal solution to Equation 16.5 corresponds to a feasible solution to Equation 16.6 and vice versa. This is explained as follows.

On the one hand, assuming \(\hat\beta\) is an optimal solution to Equation 16.5, then we can correspondingly define \(\hat\gamma_i := I\{\hat\beta_i \neq 0\}\), \(\hat\alpha_i := \hat\beta_i\), such that \(\{\hat\gamma, \hat\alpha\}\) is feasible to (Equation 16.6) and gives the same objective value as \(\hat\beta\) gives (Equation 16.5).

On the other hand, assuming \(\{\hat\gamma, \hat\alpha\}\) is optimal to (Equation 16.6), implies that we must have all of the elements in \(\hat\alpha_\gamma\) non-zero, otherwise a new \(\tilde\gamma_i := I\{\hat\alpha_i \neq 0\}\) will give a lower objective value of (Equation 16.6). As a result, if we define \(\hat\beta_i := \hat\gamma_i \hat\alpha_i\), \(\hat\beta\) will be feasible to Equation 16.5 and gives the same objective value as \(\{\hat\gamma, \hat\alpha\}\) gives Equation 16.6.

Combining both arguments shows that the two problems Equation 16.5 and Equation 16.6 are equivalent. Hence we can use results from non-convex optimization literature to find Bayes MAP estimators.

16.13 Computing the \(\ell_0\)-regularized regression solution

We now turn to the problem of computation. \(\ell_0\)-regularized least squares (Equation 16.5) is closely related to the best subset selection in linear regression as follows.

\[ \begin{array}{rl} \min_{\beta} & \frac{1}{2}\|y - X\beta\|_2^2 \\ \text{s.t.} & \|\beta\|_0 \leq k \end{array} \tag{16.7}\]

The \(\ell_0\)-regularized least squares (Equation 16.5) can be seen as (Equation 16.7)’s Lagrangian form. However, due to high non-convexity of the \(\ell_0\)-norm, (Equation 16.5) and (Equation 16.7) are connected but not equivalent. In particular, for any given \(\lambda \geq 0\), there exists an integer \(k \geq 0\), such that (Equation 16.5) and (Equation 16.7) have the same global minimizer \(\hat\beta\). However, it’s not true the other way around. It’s possible, even common, that for a given \(k\), we cannot find a \(\lambda \geq 0\), such that the solutions to (Equation 16.7) and (Equation 16.5) are the same.

Indeed, for \(k \in \{1, 2, \ldots, p\}\), let \(\hat\beta_k\) be respective optimal solutions to (Equation 16.7) and \(f_k\) respective optimal objective values, and so \(f_1 \geq f_2 \geq \cdots \geq f_p\). If we want a solution \(\hat\beta_\lambda\) to (Equation 16.5) with \(\|\hat\beta_\lambda\|_0 = k\), we need to find a \(\lambda\) such that

\[ \max_{i > k} \{f_k - f_i\} \leq \lambda \leq \min_{j < k} \{f_j - f_k\} \]

with the caveat that such \(\lambda\) need not exist.

Both problems involve discrete optimization and have thus been seen as intractable for large-scale data sets. As a result, in the past, \(\ell_0\) norm is usually replaced by its convex relaxation \(l_1\) norm to facilitate computation. However, it’s widely known that the solutions of \(\ell_0\) norm problems provide superior variable selection and prediction performance compared with their \(l_1\) convex relaxation such as Lasso. It is known that the solution to the \(\ell_0\)-regularized least squares should be better than Lasso in terms of variable selection especially when we have a design matrix \(X\) that has high collinearity among its columns.

Bertsimas, King, and Mazumder (2016) introduced a first-order algorithm to provide a stationary solution \(\beta^*\) to a class of generalized \(\ell_0\)-constrained optimization problem, with convex \(g\):

\[ \begin{array}{rl} \min_{\beta} & g(\beta) \\ \text{s.t.} & \|\beta\|_0 \leq k \end{array} \tag{16.8}\]

Let \(L\) be the Lipschitz constant for \(\nabla g\) such that \(\forall \beta_1, \beta_2\), \(\|\nabla g(\beta_1) - \nabla g(\beta_2)\| \leq L \|\beta_1 - \beta_2\|\). Their “Algorithm 1” is as follows.

  1. Initialize \(\beta^0\) such that \(\|\beta^0\|_0 \leq k\).
  2. For \(t \geq 0\), obtain \(\beta^{t+1}\) as

\[ \beta^{t+1} = H_k\left(\beta^t - \frac{1}{L} \nabla g(\beta^t)\right) \tag{16.9}\]

until convergence to \(\beta^*\).

where the operator \(H_k(\cdot)\) is to keep the largest \(k\) elements of a vector as the same, whilst to set all else to zero. It can also be called the hard thresholding at the \(k\)th largest element. In the least squares setting when \(g(\beta) = \frac{1}{2}\|y - X\beta\|_2^2\), \(\nabla g\) and \(L\) are easy to compute. Bertsimas, King, and Mazumder (2016) then uses the stationary solution \(\beta^*\) obtained by the aforementioned algorithm (Equation 16.9) as a warm start for their mixed integer optimization (MIO) scheme to produce a “provably optimal solution” to the best subset selection problem (Equation 16.7).

It’s worth pointing out that the key iteration step (Equation 16.9) is connected to the proximal gradient descent (PGD) algorithm many have used to solve the \(\ell_0\)-regularized least squares (Equation 16.5), as well as other non-convex regularization problems. PGD methods solve a general class of problems such as

\[ \min_{\beta} g(\beta) + \lambda \phi(\beta) \tag{16.10}\]

where \(g\) is the same as in (Equation 16.8), and \(\phi\), usually non-convex, is a regularization term. In this framework, in order to obtain a stationary solution \(\beta^*\), the key iteration step is

\[ \beta^{t+1} = \mathrm{prox}_{\lambda\phi}\left(\beta^t - \frac{1}{L} \nabla g(\beta^t)\right) \tag{16.11}\]

where \(\beta^t - \frac{1}{L} \nabla g(\beta^t)\) can be seen as a gradient descent step for \(g\) and \(\mathrm{prox}_{\lambda\phi}\) is the proximal operator for \(\lambda\phi\). In \(\ell_0\)-regularized least squares, \(\lambda\phi(\cdot) = \lambda\|\cdot\|_0\), and its proximal operator \(\mathrm{prox}_{\lambda\|\cdot\|_0}\) is just the hard thresholding at \(\lambda\). That is, \(\mathrm{prox}_{\lambda\|\cdot\|_0}\) is to keep the same all elements no less than \(\lambda\), whilst to set all else to zero. As a result, the similarity between (Equation 16.9) and (Equation 16.11) are quite obvious.

###Single best replacement (SBR) algorithm {#sbr}

The single best replacement (SBR) algorithm, provides a solution to the variable selection regularization (Equation 16.6). Since (Equation 16.6) and the \(\ell_0\)-regularized least squares (Equation 16.5) are equivalent, SBR also provides a practical way to give a sufficiently good local optimal solution to the NP-hard \(\ell_0\) regularization.

Take a look at the objective (Equation 16.6). For any given variable selection indicator \(\gamma\), we have an active set \(S = \{i: \gamma_i = 1\}\), based on which the minimizer \(\hat\alpha_\gamma\) of (Equation 16.6) has a closed form. \(\hat\alpha_\gamma\) will set every coefficient outside \(S\) to zero, and regress \(y\) on \(X_\gamma\), the variables inside \(S\). Therefore, the minimization of the objective function can be determined by \(\gamma\) or \(S\) alone. Accordingly, the objective function (Equation 16.6) can be rewritten as follows.

\[ \min_{S} f_{SBR}(S) = \frac{1}{2} \|y - X_S \beta_S\|_2^2 + \lambda |S| \] {#obj-sbr}

SBR thus tries to minimize \(f_{SBR}(S)\) via choosing the optimal \(\hat S\).

The algorithm works as follows. Suppose we start with an initial \(S\), usually the empty set. At each iteration, SBR aims to find a “single change of \(S\)”, that is, a single removal from or adding to \(S\) of one element, such that this single change decreases \(f_{SBR}(S)\) the most. SBR stops when no such change is available, or in other words, any single change of \(\gamma\) or \(S\) will only give the same or larger objective value. Therefore, intuitively SBR stops at a local optimum of \(f_{SBR}(S)\).

SBR is essentially a stepwise greedy variable selection algorithm. At each iteration, both adding and removal are allowed, so this algorithm is one example of the “forward-backward” stepwise procedures. It’s provable that with this feature the algorithm “can escape from some [undesirable] local minimizers” of \(f_{SBR}(S)\). Therefore, SBR can solve the \(\ell_0\)-regularized least squares in a sub-optimal way, providing a satisfactory balance between efficiency and accuracy.

We now write out the algorithm more formally. For any currently chosen active set \(S\), define a single replacement \(S \cdot i, i \in \{1, \ldots, p\}\) as \(S\) adding or removing a single element \(i\):

\[ S \cdot i := \begin{cases} S \cup \{i\}, & i \notin S \\ S \setminus \{i\}, & i \in S \end{cases} \]

Then we compare the objective value at current \(S\) with all of its single replacements \(S \cdot i\), and choose the best one. SBR proceeds as follows:

  • Step 0: Initialize \(S_0\). Usually, \(S_0 = \emptyset\). Compute \(f_{SBR}(S_0)\). Set \(k = 1\).
  • Step \(k\): For every \(i \in \{1, \ldots, p\}\), compute \(f_{SBR}(S_{k-1} \cdot i)\). Obtain the single best replacement \(j := \arg\min_{i} f_{SBR}(S_{k-1} \cdot i)\).
    • If \(f_{SBR}(S_{k-1} \cdot j) \geq f_{SBR}(S_{k-1})\), stop. Report \(\hat S = S_{k-1}\) as the solution.
    • Otherwise, set \(S_k = S_{k-1} \cdot j\), \(k = k+1\), and repeat step \(k\).

It can be shown that SBR always stops within finite steps. With the output \(\hat S\), the locally optimal solution to the \(\ell_0\)-regularized least squares \(\hat\beta\) is just the coefficients of \(y\) regressed on \(X_{\hat S}\) and zero elsewhere. In order to include both forward and backward steps in the variable selection process, the algorithm needs to compute \(f_{SBR}(S_{k-1} \cdot i)\) for every \(i\) at every step. Because it involves a one-column update of current design matrix \(X_{S_{k-1}}\), this computation can be made very efficient by using the Cholesky decomposition, without explicitly calculating \(p\) linear regressions at each step . An R package implementation of the algorithm is available upon request.

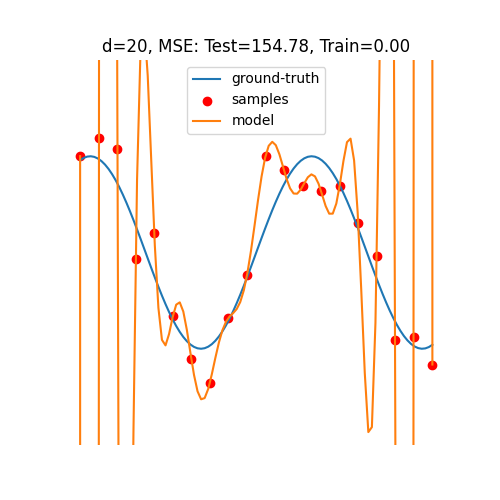

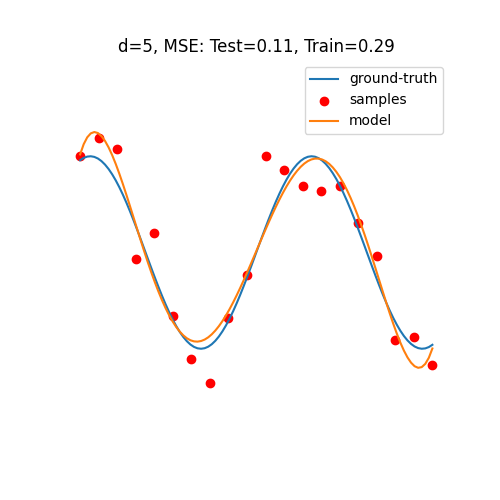

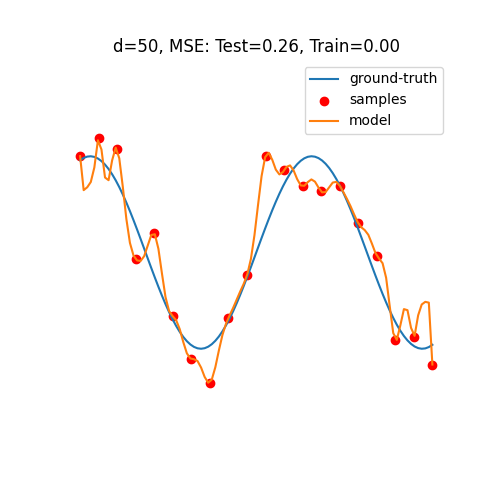

16.14 Double Descent

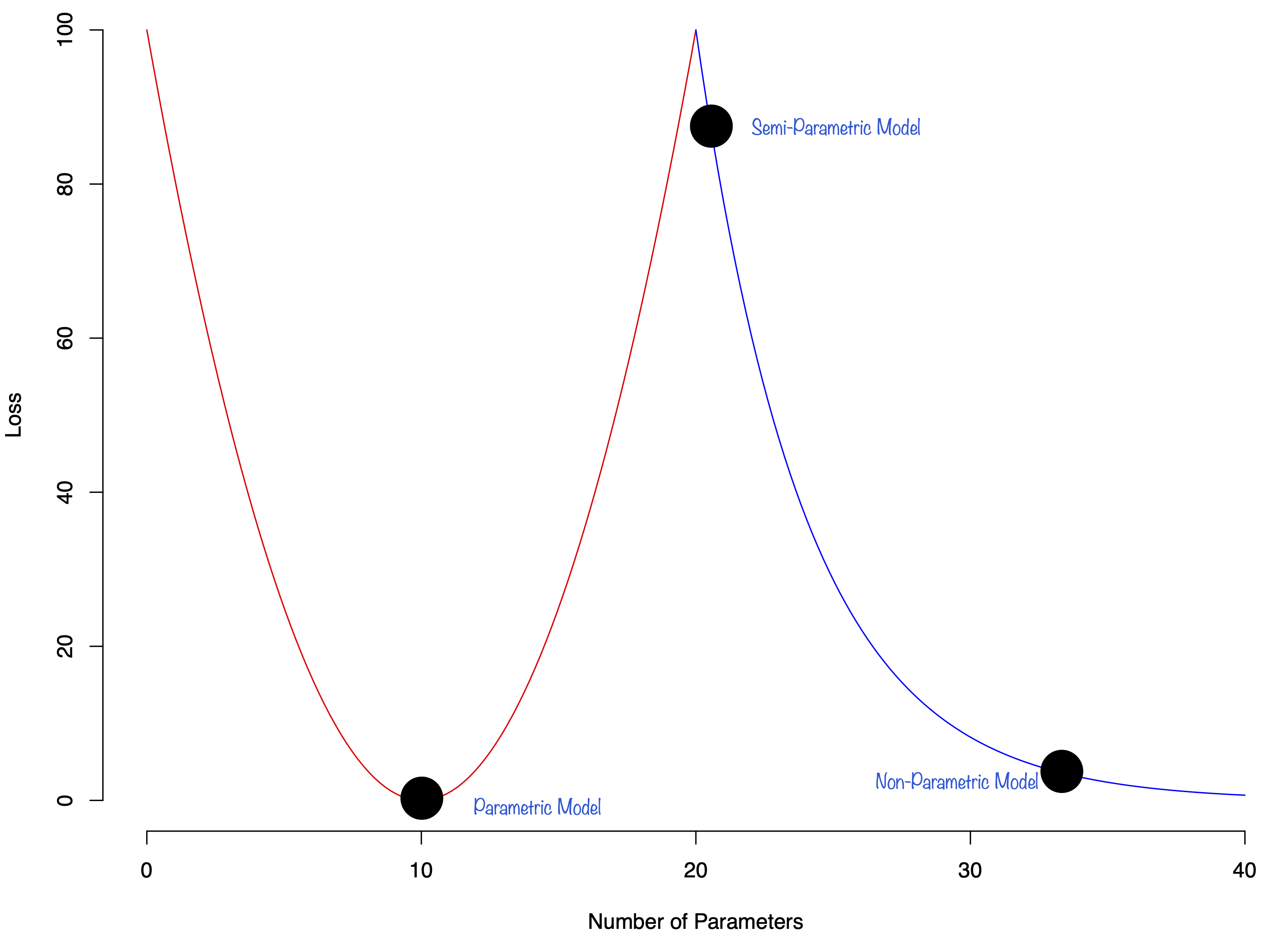

Double Descent Stylized

16.15 Polya-Gamma

Bayesian inference for logistic regression has long been recognized as a computationally challenging problem due to the analytically inconvenient form of the binomial likelihood function(Polson, Scott, and Windle 2013). While the probit model enjoys simple latent-variable methods for posterior sampling, the logistic model has historically required more complex approaches involving multiple layers of auxiliary variables or approximations(Polson, Scott, and Windle 2013). The breakthrough work of Polson, Scott, and Windle (2013) introduced a revolutionary data-augmentation strategy using a novel class of distributions called Pólya-Gamma distributions, which enables simple and exact Gibbs sampling for Bayesian logistic regression(Polson, Scott, and Windle 2013).

This methodology represents a significant advancement in Bayesian computation, providing a direct analog to the Albert and Chib (1993) method for probit regression while maintaining both exactness and simplicity(Polson, Scott, and Windle 2013). The approach has proven particularly valuable for complex hierarchical models where traditional Metropolis-Hastings samplers are difficult to tune and implement effectively(Polson, Scott, and Windle 2013).

Key Innovation

The Pólya-Gamma methodology provides exact Gibbs sampling for Bayesian logistic regression, eliminating the need for complex Metropolis-Hastings tuning while maintaining theoretical guarantees.

16.16 The Pólya-Gamma Distribution

The Pólya-Gamma distribution, denoted as PG(b,c), is carefully constructed as a subset of infinite convolutions of gamma distributions(Polson, Scott, and Windle 2013). A random variable X follows a Pólya-Gamma distribution with parameters b > 0 and c ∈ ℝ if:

\[X \stackrel{d}{=} \frac{1}{2\pi^2} \sum_{k=1}^{\infty} \frac{g_k}{(k-1/2)^2 + c^2/(4\pi^2)}\]

where \(g_k \sim \text{Ga}(b,1)\) are independent gamma random variables, and \(\stackrel{d}{=}\) indicates equality in distribution(Polson, Scott, and Windle 2013).

The Pólya-Gamma family exhibits several remarkable properties that make it ideal for data augmentation:

  1. Laplace Transform: For \(\omega \sim \text{PG}(b,0)\), the Laplace transform is \(E\{\exp(-\omega t)\} = \cosh^{-b}(\sqrt{t}/2)\)(Polson, Scott, and Windle 2013)

  2. Exponential Tilting: The general PG(b,c) distribution arises through exponential tilting of the PG(b,0) density:

\[p(x|b,c) = \frac{\exp(-c^2x/2)p(x|b,0)}{E[\exp(-c^2\omega/2)]}\]

where the expectation is taken with respect to PG(b,0)(Polson, Scott, and Windle 2013)

  1. Convolution Property: The family is closed under convolution for random variates with the same tilting parameter(Polson, Scott, and Windle 2013)

  2. Known Moments: All finite moments are available in closed form, with the expectation given by:

\[E(\omega) = \frac{b}{2c}\tanh(c/2) = \frac{b}{2c}\frac{e^c-1}{1+e^c}\]

Computational Advantage

The known moments and convolution properties make the Pólya-Gamma distribution computationally tractable and theoretically well-behaved.

16.16.1 The Data-Augmentation Strategy

The core of the Pólya-Gamma methodology rests on a fundamental integral identity that represents binomial likelihoods as mixtures of Gaussians(Polson, Scott, and Windle 2013). The key theorem states:

Theorem 1: For b > 0 and a ∈ ℝ, the following integral identity holds:

\[\frac{(e^\psi)^a}{(1+e^\psi)^b} = 2^{-b}e^{\kappa\psi} \int_0^{\infty} e^{-\omega\psi^2/2} p(\omega) d\omega\]

where \(\kappa = a - b/2\), and \(p(\omega)\) is the density of \(\omega \sim \text{PG}(b,0)\)(Polson, Scott, and Windle 2013).

Moreover, the conditional distribution \(p(\omega|\psi)\) is also in the Pólya-Gamma class: \((\omega|\psi) \sim \text{PG}(b,\psi)\)(Polson, Scott, and Windle 2013).

16.16.2 Gibbs Sampling Algorithm

This integral identity leads directly to a simple two-step Gibbs sampler for Bayesian logistic regression(Polson, Scott, and Windle 2013). For a dataset with observations \(y_i \sim \text{Binom}(n_i, 1/(1+e^{-\psi_i}))\) where \(\psi_i = x_i^T\beta\), and a Gaussian prior \(\beta \sim N(b,B)\), the algorithm iterates:

  1. Sample auxiliary variables: \((\omega_i|\beta) \sim \text{PG}(n_i, x_i^T\beta)\) for each observation
  2. Sample parameters: \((\beta|y,\omega) \sim N(m_\omega, V_\omega)\) where:
    • \(V_\omega = (X^T\Omega X + B^{-1})^{-1}\)
    • \(m_\omega = V_\omega(X^T\kappa + B^{-1}b)\)
    • \(\kappa = (y_1-n_1/2, \ldots, y_n-n_n/2)\)
    • \(\Omega = \text{diag}(\omega_1, \ldots, \omega_n)\)

This approach requires only Gaussian draws for the main parameters and Pólya-Gamma draws for a single layer of latent variables, making it significantly simpler than previous methods(Polson, Scott, and Windle 2013).

16.16.3 The PG(1,z) Sampler

The practical success of the Pólya-Gamma method depends on efficient simulation of Pólya-Gamma random variables(Polson, Scott, and Windle 2013). The authors developed a sophisticated accept-reject sampler based on the alternating-series method of Devroye (1986)(Devroye 1986). For the fundamental PG(1,c) case, the sampler:

  • Uses exponential and inverse-Gaussian draws as proposals
  • Achieves acceptance probability uniformly bounded below at 0.99919
  • Requires no tuning for optimal performance
  • Evaluates acceptance using iterative partial sums

16.16.4 General PG(b,z) Sampling

For integer values of b, PG(b,z) random variables are generated by summing b independent PG(1,z) draws, exploiting the convolution property(Polson, Scott, and Windle 2013). This approach maintains efficiency for moderate values of b, though computational cost scales linearly with the total number of counts in negative binomial applications(Polson, Scott, and Windle 2013).

16.17 Implementation with BayesLogit Package

16.17.1 Package Overview

The BayesLogit package provides efficient tools for sampling from the Pólya-Gamma distribution(Windle 2023). The current version (2.1) focuses on core functionality: sampling from the Pólya-Gamma distribution through the rpg() function and its variants(Windle 2023).

16.17.2 Core Functions

The package offers several sampling methods:

  • rpg(): Main function that automatically selects the best method
  • rpg.devroye(): Devroye-like method for integer h values
  • rpg.gamma(): Sum of gammas method (slower but works for all parameters)
  • rpg.sp(): Saddlepoint approximation method

16.17.3 Installation and Basic Usage

# Install from CRAN
install.packages("BayesLogit")
library(BayesLogit)

# Basic usage examples
# Sample from PG(1, 0)
samples1 <- rpg(1000, h=1, z=0)

# Sample with tilting parameter
samples2 <- rpg(1000, h=1, z=2.5)

# Multiple shape parameters
h_values <- c(1, 2, 3)
z_values <- c(1, 2, 3)
samples3 <- rpg(100, h=h_values, z=z_values)

16.17.4 Implementing Bayesian Logistic Regression

Here’s a complete implementation of Bayesian logistic regression using the Pólya-Gamma methodology:

# Bayesian Logistic Regression with Pólya-Gamma Data Augmentation
bayesian_logit_pg <- function(y, X, n_iter=5000, burn_in=1000) {
  n <- length(y)
  p <- ncol(X)

  # Prior specification (weakly informative)
  beta_prior_mean <- rep(0, p)
  beta_prior_prec <- diag(0.01, p)  # Precision matrix

  # Storage for samples
  beta_samples <- matrix(0, n_iter, p)
  omega_samples <- matrix(0, n_iter, n)

  # Initialize
  beta <- rep(0, p)

  for(iter in 1:n_iter) {
    # Step 1: Sample omega (auxiliary variables)
    psi <- X %*% beta
    omega <- rpg(n, h=1, z=psi)

    # Step 2: Sample beta (regression coefficients)
    # Posterior precision and mean
    V_omega <- solve(t(X) %*% diag(omega) %*% X + beta_prior_prec)
    kappa <- y - 0.5
    m_omega <- V_omega %*% (t(X) %*% kappa + beta_prior_prec %*% beta_prior_mean)

    # Sample from multivariate normal
    beta <- mvrnorm(1, m_omega, V_omega)

    # Store samples
    beta_samples[iter, ] <- beta
    omega_samples[iter, ] <- omega
  }

  # Return samples after burn-in
  list(
    beta = beta_samples[(burn_in+1):n_iter, ],
    omega = omega_samples[(burn_in+1):n_iter, ],
    n_samples = n_iter - burn_in
  )
}

# Example usage with simulated data
set.seed(123)
n <- 100
X <- cbind(1, matrix(rnorm(n*2), n, 2))  # Intercept + 2 predictors
beta_true <- c(-0.5, 1.2, -0.8)
logits <- X %*% beta_true
probs <- 1/(1 + exp(-logits))
y <- rbinom(n, 1, probs)

# Fit model
results <- bayesian_logit_pg(y, X, n_iter=3000, burn_in=500)

# Posterior summaries
posterior_means <- colMeans(results$beta)
posterior_sds <- apply(results$beta, 2, sd)

Computational Advantages

Extensive benchmarking studies demonstrate the superior performance of the Pólya-Gamma method across various scenarios(Polson, Scott, and Windle 2013):

  1. Simple logistic models: Competitive with well-tuned Metropolis-Hastings samplers
  2. Hierarchical models: Significantly outperforms alternative methods
  3. Mixed models: Provides substantial efficiency gains over traditional approaches
  4. Spatial models: Shows dramatic improvements for Gaussian process spatial models

Theoretical Guarantees

The Pólya-Gamma Gibbs sampler enjoys strong theoretical properties(Polson, Scott, and Windle 2013):

  • Uniform ergodicity: Proven by Choi and Hobert (2013), guaranteeing convergence and central limit theorems for Monte Carlo averages(Polson, Scott, and Windle 2013)
  • No tuning required: Unlike Metropolis-Hastings methods, the sampler requires no manual tuning
  • Exact sampling: Produces draws from the correct posterior distribution without approximation
Important Note

The theoretical guarantees hold under standard regularity conditions, and the method requires proper prior specification for optimal performance.

Beyond Binary Logistic Regression

The Pólya-Gamma methodology extends naturally to various related models(Polson, Scott, and Windle 2013):

  1. Negative binomial regression: Direct application using the same data-augmentation scheme
  2. Multinomial logistic models: Extended through partial difference of random utility models(Windle, Polson, and Scott 2014)
  3. Mixed effects models: Seamless incorporation of random effects structures
  4. Spatial models: Efficient inference for spatial count data models

16.17.5 Modern Applications

Recent developments have expanded the methodology’s applicability[Windle, Polson, and Scott (2014)](Zhang, Datta, and Banerjee 2018):

  • Gaussian process classification: Scalable variational approaches using Pólya-Gamma augmentation
  • Deep learning: Integration with neural network architectures for Bayesian deep learning
  • State-space models: Application to dynamic binary time series models

The Pólya-Gamma methodology represents a fundamental advancement in Bayesian computation for logistic models, combining theoretical elegance with practical efficiency(Polson, Scott, and Windle 2013). Its introduction of the Pólya-Gamma distribution class and the associated data-augmentation strategy has enabled routine application of Bayesian methods to complex hierarchical models that were previously computationally prohibitive(Polson, Scott, and Windle 2013).

The BayesLogit package provides researchers and practitioners with efficient, well-tested implementations of these methods(Windle 2023). The combination of exact inference, computational efficiency, and theoretical guarantees makes the Pólya-Gamma approach the method of choice for Bayesian logistic regression in most practical applications(Polson, Scott, and Windle 2013).

As computational demands continue to grow and models become increasingly complex, the Pólya-Gamma methodology’s advantages become even more pronounced, establishing it as an essential tool in the modern Bayesian statistician’s toolkit (Tiao (2019)). Ongoing research continues to extend the Pólya-Gamma methodology to new domains, including high-dimensional settings, nonparametric models, and integration with modern machine learning frameworks.
